Home > products > Discrete Magnetic Transformers > 000-7090-37R-LF1 / 749010013 SMT Transformer LAN 10 / 100 SMD Surface Mount

000-7090-37R-LF1 / 749010013 SMT Transformer LAN 10 / 100 SMD Surface Mount

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 749050010A

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

smd transformer

,

surface mounting transformer

Specifications:
749050010A
Inductance:
350µH
Turns Ratio:
1 : 1
Mounting Type:
Surface Mount
Dimension:
12.95 Mm X 7.11 Mm X 5.33 Mm
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
749050010A
Inductance:
350µH
Turns Ratio:
1 : 1
Mounting Type:
Surface Mount
Dimension:
12.95 Mm X 7.11 Mm X 5.33 Mm
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet

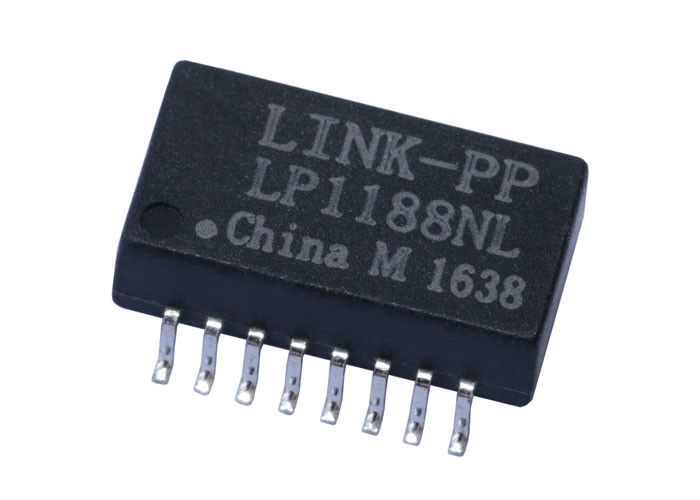

000-7090-37R-LF1 / 749010013 SMT Transformer LAN 10 / 100 SMD Surface Mount
000-7090-37R-LF1 / 749010013 Transformers Audio & Signal 10/100 Base-T XFMR 1 Port LAN



REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Transformer Type DATACOM TRANSFORMER
Application GENERAL PURPOSE
Approvals UL;
Insertion Loss 1.1 dB
Isolation Voltage 1500.0 V
LINK-PP Cross PN LP1188NL
Manufacturer Series 749010013



Frequency Range: 500 kHz to 100 MHz
Inductance: 350 uH
Isolation Voltage: 1500 VAC
Operating Temperature Range: - 40 C to + 85 C
Package / Case: 12.95 mm x 7.11 mm x 5.33 mm
Length: 12.95 mm
Width: 7.11 mm
Height: 5.33 mm
Packaging: Reel
Brand: LINK-PP Equivalent
Current Rating: 8 mA
Maximum DC Current: 8 mA
Product Type: Surface Mount Transformer



749010014 / 000-7315-37R/-LF1



Specifications 749010014 / 000-7315-37R/-LF1
Transformer Type DATACOM TRANSFORMER
Application SIGNAL
Approvals UL
Insertion Loss 1.0 dB
Manufacturer Series 749010014 Equivalent Cross
Mounting Feature SURFACE MOUNT
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Physical Dimension 12.95mm x 9.4mm x 5.33mm
