Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPJU3996AHNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specifications: |
LPJU3996AHNL |
RJ45 Shielded: |
Yes |
Ethernet: |
10/100 Mbps Power |
Indicator: |
Green -Yellow LEDs |
Files: |
3D / Step/IGS/PDF |
Samples: |
Available |
Specifications: |
LPJU3996AHNL |
RJ45 Shielded: |
Yes |
Ethernet: |
10/100 Mbps Power |
Indicator: |
Green -Yellow LEDs |
Files: |
3D / Step/IGS/PDF |
Samples: |
Available |

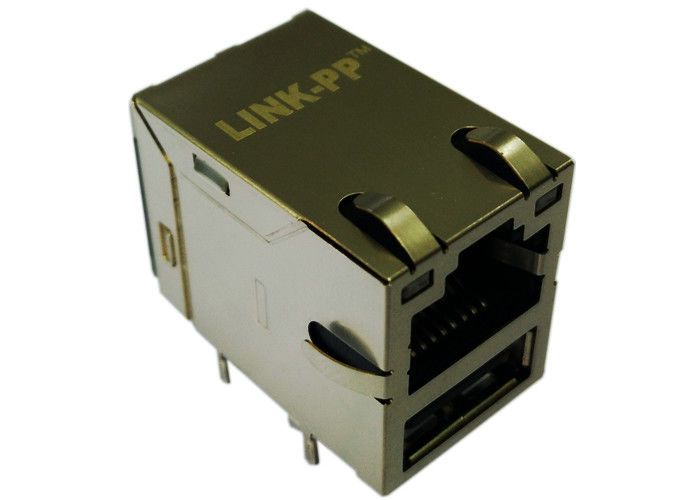

USB COON RJ45 POE Magnetics
POE Rj45 With 1port USB
Electrical Specifications @25℃
1.OCL: 350uH MIN
@ 100KHz/100mVrms 8mA DC Bias
2.Turns Ratio:
TX=1CT:1CT RX=1CT:1CT
3.Insertion Loss:
1～100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1～30MHz:-18
30～60MHz:-[18-20log(f/30MHz)]
60～80MHz:-12
5.Crosstalk(TX - RX):
0.5～100MHz:-35dB MIN
6.Common to Differential Mode Rejection:
0.1～100MHz:-40dB MIN
7.Common to Common Mode Rejection:
0.1～100MHz:-30dB MIN
8.Hipot: 1500Vrms/0.5mA/60Sec
9.Operating Temperature: 0℃～70℃.
10. Balanced DC Line Current
350mA Max @57VDC Continuous
500mA Max @57VDC For 200 Milseconds
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3af specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
RJ-45 Contact plating: Gold 6 micro-inches min.
In contact area
USB Contact plating: Gold Flash
4.Wave solder tip temperature and time: 265℃ MAX,5 Sec MAX.
