H1028NL Dual 10/100 Transformer XFRMR MODULE 2PORT H1028NLT

China H1028NL Dual 10/100 Transformer XFRMR MODULE 2PORT H1028NLT supplier
H1028NL Dual 10/100 Transformer XFRMR MODULE 2PORT H1028NLT supplier H1028NL Dual 10/100 Transformer XFRMR MODULE 2PORT H1028NLT supplier H1028NL Dual 10/100 Transformer XFRMR MODULE 2PORT H1028NLT supplier

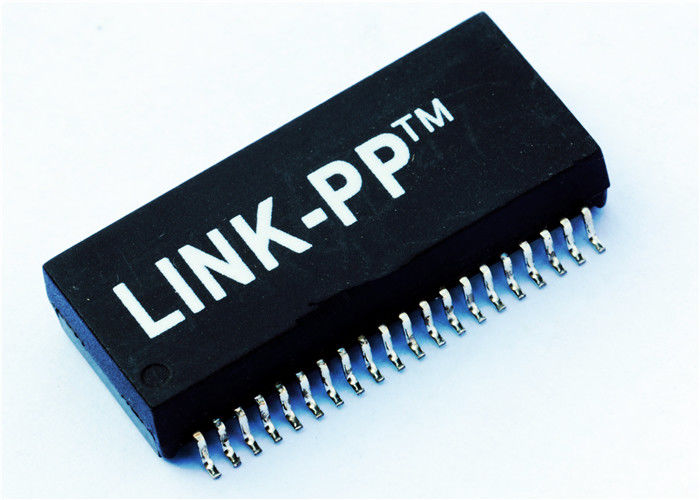

Large Image :  H1028NL Dual 10/100 Transformer XFRMR MODULE 2PORT H1028NLT

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H1028NL

Payment & Shipping Terms:

Minimum Order Quantity: 2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: H1028NL(T) P/N: LP50XXANL
Measure: L28.58XB16.26XH5.84 (mm) Mounting: SMD
Ethernet: 2x10/100mpbs Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

H1028NL Dual 10/100 Transformer XFRMR MODULE 2PORT 1:1 , H1028NLT



MODULE XFRMR DL ETHER LAN 40SOIC , H1028NL Equivalent Cross

Audio Transformers / Signal Transformers 10/100Base-TX SMD 2-Port

10/100BASE-TX DUAL PORT TRANSFORMER MODULES For Use with Transceivers Requiring 1:1 Transmit and Receive Turns Ratios

XFRMR MODULE 2PORT 1:1 10/100 H1028NLT Specifications



Specifications H1028NL, H1028NLT
REACH Compliant Yes
EU RoHS Compliant Yes
Status Updated
Transformer Type DATACOM TRANSFORMER
Application 10/100 BASE-TX 2 ports
Approvals IEEE 802.3
Insertion Loss 0.5 dB
Isolation Voltage 1500.0 V
Mounting Feature SURFACE MOUNT
Number of Functions 2
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Packing Method TAPE & REEL; TUBE
Physical Dimension L28.58XB16.26XH5.84 (mm)
Primary Inductance 350.0 µH
Turns Ratio (Np:Ns) 1:1; 1:1; 1:1; 1:1
Height 5.84 mm
Length 28.58 mm
Width 16.26 mm
Additional Feature HEIGHT AND BREADTH DIMENSIONS INCLUDE TERMINALS ALSO
