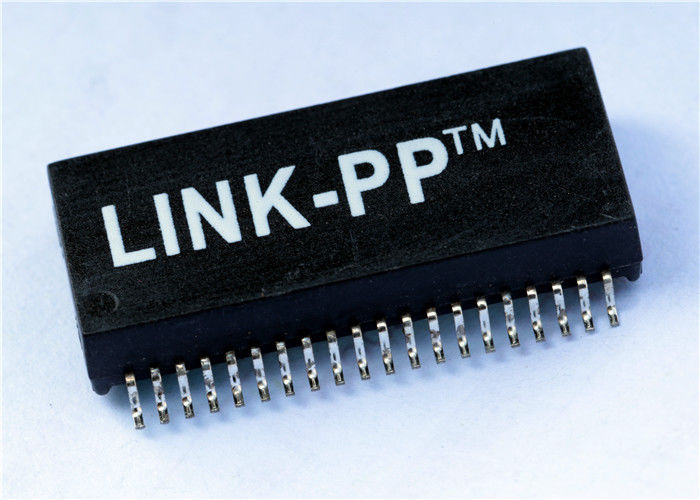

H1049NL Ethernet Isolation Transformer 10/100 Base - TX SMD 2 - Port H1049NLT

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: H1049NLT

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

ethernet isolation transformer

,

lan discrete transformer

Specifications:
H1049NLT
P/N:
LP50XXANL
Measure:
L28.58XB16.26XH5.84 (mm)
Mounting:
SMD
Ethernet:
2x10/100mpbs
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
H1049NLT
P/N:
LP50XXANL
Measure:
L28.58XB16.26XH5.84 (mm)
Mounting:
SMD
Ethernet:
2x10/100mpbs
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
H1049NL Ethernet Isolation Transformer 10/100 Base - TX SMD 2 - Port H1049NLT
H1049NL DATACOM TRANSFORMER 10/100Base-TX SMD 2-Port H1049NLT



RoHS reflow temperature rating 245°C
Meets IEEE 802.3 specification
Some models offer AutoMDIX capability



Specifications H1049NL  , H1049NLT
REACH Compliant Yes
EU RoHS Compliant Yes
Status Updated
Transformer Type DATACOM TRANSFORMER
Application 10/100 BASE-TX 2 ports
Approvals IEEE 802.3
Insertion Loss 0.5 dB
Isolation Voltage 1500.0 V
Mounting Feature SURFACE MOUNT
Number of Functions 2
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Packing Method TAPE & REEL; TUBE
Physical Dimension L28.58XB16.26XH5.84 (mm)
Primary Inductance 350.0 µH
Turns Ratio (Np:Ns) 1:1; 1:1; 1:1; 1:1
Height 5.84 mm
Length 28.58 mm
Width 16.26 mm
Additional Feature HEIGHT AND BREADTH DIMENSIONS INCLUDE TERMINALS ALSO
