Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H1036LNLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
H1036LNLT |
P/N: |
LP11XXNL |
Measure: |
28.58mm L X 12.19mm W X 5.84mm H |
Mounting: |
SMD |
Ethernet: |
10/100Base-TX X 4 |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
H1036LNLT |
P/N: |
LP11XXNL |
Measure: |
28.58mm L X 12.19mm W X 5.84mm H |
Mounting: |
SMD |
Ethernet: |
10/100Base-TX X 4 |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

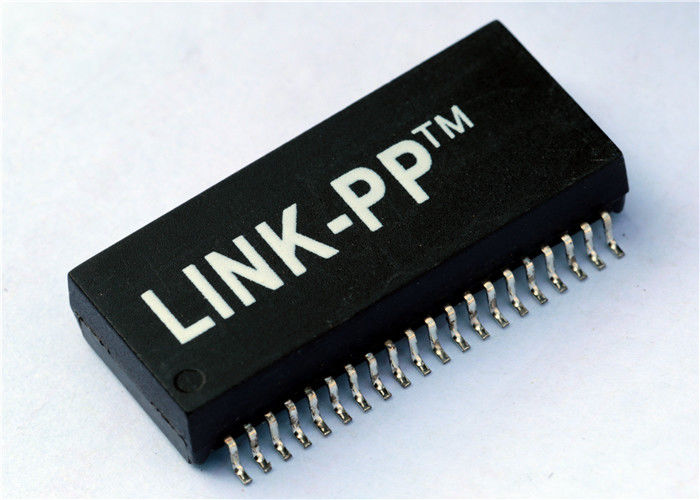

H1036LNL , H1036LNLT XFRMR MODULE 4PORT 1:1 10/100Base Isolation Transformer
RoHS peak reflow temperature rating: 245°C
Meets IEEE 802.3 specification H1036LNL Specifications
Models designed to support four single or double-stacked RJ-45 connectors
Audio Transformers / Signal Transformers 10/100Base-TX SMD 4-Port
10/100Base-TX Quad Port Transformer Modules
For Use with Tranceivers Requiring 1:1 Transmit and Receive Turns Ratio
|
Series |
4 port 100Base-Tx Magnetic Transformers |
|---|---|
|
Packaging |
Tape & Reel (TR) |
|
Part Status |
Updated |
|
Transformer Type |
Isolation and Data Interface (Encapsulated) |
|
Equivalent |
LINK-PP LP11XXNL Series |
|
Turns Ratio - Primary:Secondary |
1 : 1 Transmitter, 1 : 1 Receiver |
|
Mounting Type |
Surface Mount |
|
Size / Dimension |
28.58mm L x 12.19mm W |
|
Height - Seated (Max) |
5.84mm |
|
Weight |
0.14 oz (3.99g) |
