Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJE4720DNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.08-$1.79
Packaging Details: 20pcs/Tray or Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 100K-PCS/Month
Specifications: |
LPJE4720DNL |
Part No: |
LPJE4720-2DNL |
Ethernet: |
Cat5,5Ex 1 |
Standard: |
IEEE802.3 |
Mounting: |
THT |
Samples: |
Available |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
LPJE4720DNL |
Part No: |
LPJE4720-2DNL |
Ethernet: |
Cat5,5Ex 1 |
Standard: |
IEEE802.3 |
Mounting: |
THT |
Samples: |
Available |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |

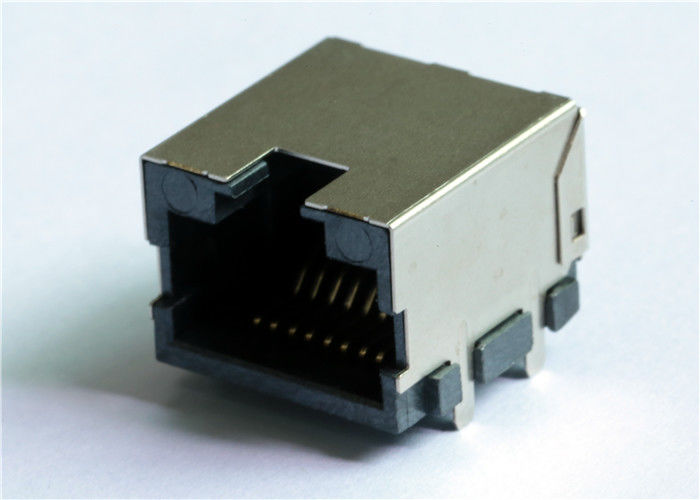

1x1 Port Rj45 Low Profile SMT Tab-up LPJE4720-2DNL
Surface Mounting Rj45 Low Profile, Low Height Connector , 8P8C
Ethernet port Cat5 8Position Female Socket rj45 LPJE4720DNL
NOTES:
Electrical:
1.Voltage Rating : 125VAC RMS
2.Current Rating : 1.5AMP
3.Contact Resistance : 20 MΩ MAX
4.Insulation Resistance : 500 MΩMin @500V DC
5.Dielectric Strength : 1000VAC RMS 60HZ,1MIN
Mechanical:
1.Housing&Insert Material : PBT UL94V-0
2.Contact Material : Diameter 0.46mm Phosphor Bronze
Gold Plating 3u Over Nickel
3.Shield : 0.20-0.25mm Thickness Brass
With Tin Plated
4.Operation Life : 750 Cycless Min
Environmental
1.Storage : -40℃ to +85℃ 2.Opertion : -40℃ to +85℃
3.Wave solder tip temperature: 265℃ Max, 5 Sec Max
UL Certification : File Number E484635
