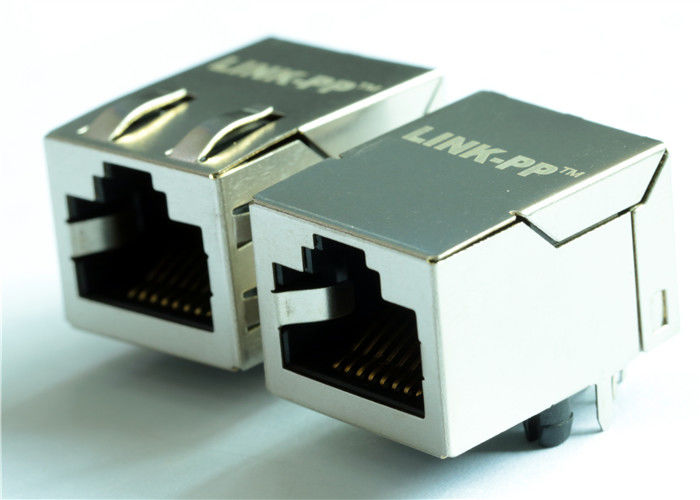

HR891181A LPJ16211DNL 10/100BT RJ45 Modular Jack Without LEDs

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HR891181A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

modular jacks rj45

,

industrial rj45 connector

Spec:
HR891181A
P.N Cross:
LPJ16211DNL
Magnetic:
No POE
Application:
10/100Base-T
Termination:
Solder
Samples:
Available
Spec:
HR891181A
P.N Cross:
LPJ16211DNL
Magnetic:
No POE
Application:
10/100Base-T
Termination:
Solder
Samples:
Available
HR891181A LPJ16211DNL 10/100BT RJ45 Modular Jack Without LEDs
HR891181A LPJ16211DNL 10/100BT RJ45 Modular Jack Without LEDs



  • Pin to pin HR891181A
  • LPJ16211DNL Equivalent / Cross Alternate PN.
  • 10/100Base-T Magnetic Transformer Integrated rj45 without LEDs.
  • But LEDs can be designed Flexible according to Clients' requirements.



Single Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics,Without LED,Tab Up,RoHS
LINK-PP Part Number LPJ16211DNL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB UP
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.45
Package Length (mm) 21.25
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

HR891181A LPJ16211DNL 10/100BT RJ45 Modular Jack Without LEDs 0


BeagleBone Black


LINK-PP RJ45 Designed for BeagleBone Black of Texas Instrument

http://www.ti.com/tool/beaglebk#0

a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.



LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti



HR891181A LPJ16211DNL 10/100BT RJ45 Modular Jack Without LEDs 1
