Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

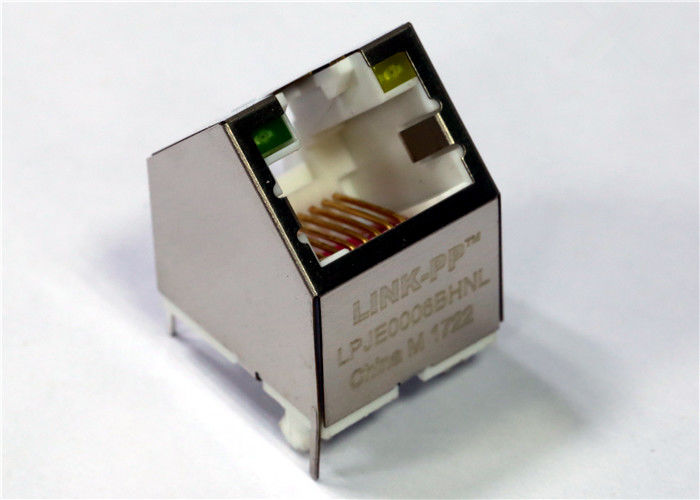

Model Number: LPJE0006BHNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
LPJE0006BHNLSpecification: |
LPJE0006BHNL |
P.N: |
LPJE0006BHNL |
Ethernet: |
Cat,3,5 |
Apllication: |
Ethernet PCB |
Original Munafactuer: |
LINK-PP |
Samples: |
Free |
LPJE0006BHNLSpecification: |
LPJE0006BHNL |
P.N: |
LPJE0006BHNL |
Ethernet: |
Cat,3,5 |
Apllication: |
Ethernet PCB |
Original Munafactuer: |
LINK-PP |
Samples: |
Free |
Electrical:
1.Voltage Rating : 125VAC RMS
2.Current Rating : 1.5AMP
3.Contact Resistance : 20 MΩ MAX
4.Insulation Resistance : 500 MΩMin @500V DC
5.Dielectric Strength : 1000VAC RMS 60HZ,1MIN
Mechanical:
1.Housing&Insert Material : PBT UL94V-0
2.Contact Material : Diameter 0.46mm Phosphor Bronze
Gold Plating 6u Over Nickel
3.Shield : 0.20-0.25mm Thickness Brass
With Tin Plated
4.Operation Life : 750 Cycless Min
Environmental
1.Storage : -40℃ to +85℃ 2.Opertion : -40℃ to +85℃
3.Wave solder tip temperature: 265℃ Max, 5 Sec Max
UL Certification : File Number E484635
