Model Number: LPJ19234BHNL
Payment & Shipping Terms
Minimum Order Quantity: 500
Price: Supportive
Packaging Details: Reel&Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specifications: |
LPJ19234BHNL |
PN.: |
LPJ19234BHNL |
Mounting: |
SMD |
Ethernet: |
Fast 10/100Base-Tx |
Termination: |
Solder |
Samples: |
Free |
Specifications: |
LPJ19234BHNL |
PN.: |
LPJ19234BHNL |
Mounting: |
SMD |
Ethernet: |
Fast 10/100Base-Tx |
Termination: |
Solder |
Samples: |
Free |

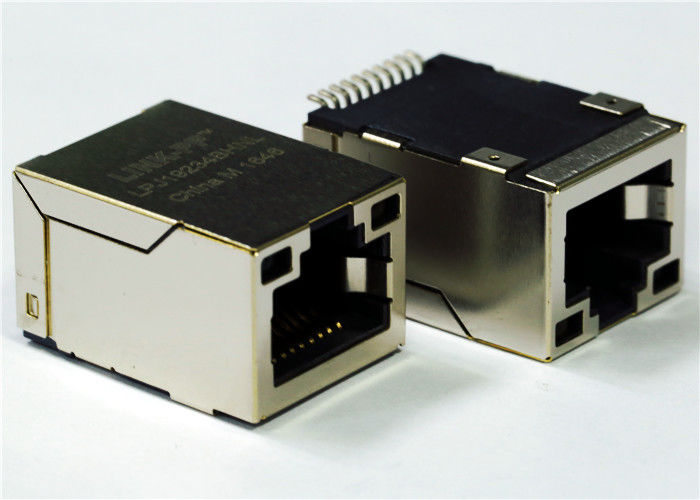

8 Position Connector Rj45 Integrated with Transformer LPJ19234BHNL
Fast Ethernet Rj45 Socket with Magnetic Inside the connector
1.OCL: 350uH MIN
@100KHz,0.1Vrms,8mADC Bias
2.Turns Ratio:
TX=1CT∶1CT RX=1CT∶1CT
3.Insertion Loss:
0.1-100MHz:-1.1dB MAX
4.Return Loss(dB TYP):
30MHz:-20 60MHz:-14
80MHz:-11.5
5.Crosstalk(dB TYP):
30MHz:-45 60MHz:-40
100MHz:-35
6.DCMR(dB TYP):
30MHz:-42 50MHz:-37
100MHz:-33
7.Hipot: 1500Vrms MIN
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3u specification
3.Connector Materials:
Housing Material:Thermoplastic LCP+30%G.F UL94V-0
Contact Material:Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins:Brass C2680R-H Thickness=0.35mm
Shield:SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Maximun reflow temperature is 250℃,5 Sec.
5.UL Certification: File Number E484635
