Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 7499211123A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Type: |

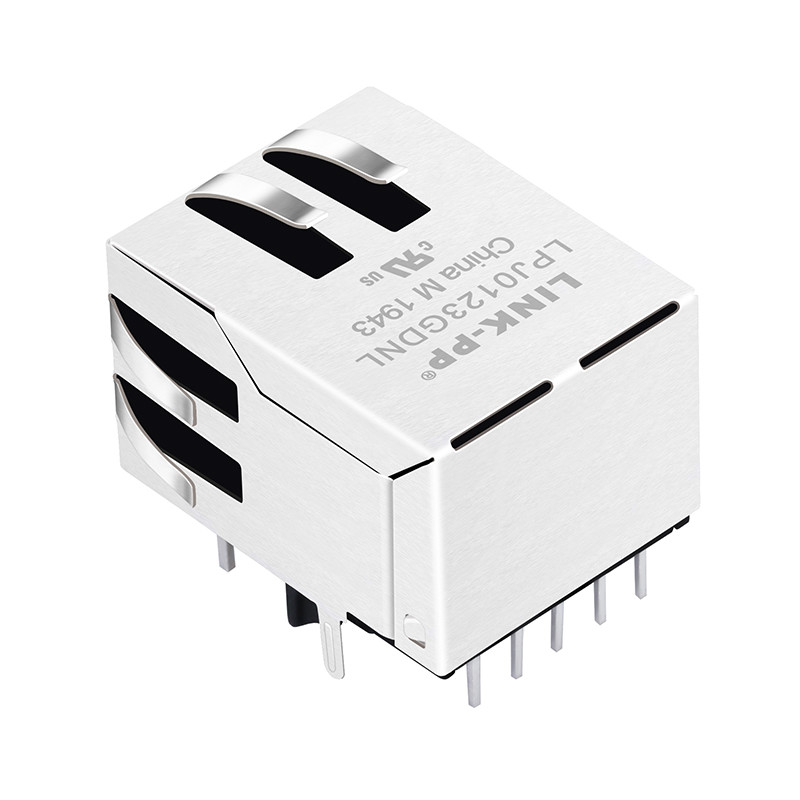

7499211123A Integrated Connector Module |
Data Rate: |
100BASE-TX |
TAB Direction: |
Down |
PoE Function: |
Support PoE |
Number Of Ports: |
1x1 Port |
Improved CMRR: |
YES |
LED Color: |
Yellow-Green |
Mount: |
Though Hole |
Shield Tabs: |
YES |
Operating Temperature: |
0 Up To +70 °C |
Type: |
7499211123A Integrated Connector Module |
Data Rate: |
100BASE-TX |
TAB Direction: |
Down |
PoE Function: |
Support PoE |
Number Of Ports: |
1x1 Port |
Improved CMRR: |
YES |
LED Color: |
Yellow-Green |
Mount: |
Though Hole |
Shield Tabs: |
YES |
Operating Temperature: |
0 Up To +70 °C |
| Items | RJ45 Connector with 10/100 Base-TX Integrated Magnetics For PoE Application |
|---|---|
| Plastic Housing Material | Thermoplastic PA66 |
| Plastic Housing Color | Black |
| Plastic Housing Flammability | Rating UL94 V-0 |
| Shielding Material | Brass |
| Shielding Plating | 50µ" Nickel |
| Contact Material | Phosphor Bronze |
| Contact Plating |
30µ" Gold over 50µ" Nickel |
| Properties | Test conditions | Value | Unit | Tol. |
|---|---|---|---|---|
| Inductance | 100 kHz/ 100 mV | 350 | µH | min. |
| Insulation Test Voltage | 1 min. | 1500 | V (RMS) | min. |
| Insertion Loss | 1-100 MHz | -1 | dB | max. |
| Return Loss | 1-30 MHz | -18 | dB | min. |
| Return Loss | 30-60 MHz | -12 | dB | min. |
| Return Loss | 60-80 MHz | -10 | dB | min. |
| Return Loss | 80-100 MHz | -10 | dB | min. |
| Crosstalk | 1-100 MHz | -35 | dB | min. |
| Crosstalk | 100-500 MHz | -15 | dB | min. |
| Common Mode Rejection Ratio | 1-100 MHz | -35 | dB | min. |
| Common Mode Rejection Ratio | 100-250 MHz | -25 | dB | min. |
| Common Mode Rejection Ratio | 250-500 MHz | -25 | dB | min. |
| Turns Ratio | 1:1 | ±2% |
It is recommended that the component's temperature does not exceed +70°C under worst-case conditions. Test conditions of Electrical Properties: +20 °C, 33 % RH if not specified differently:
