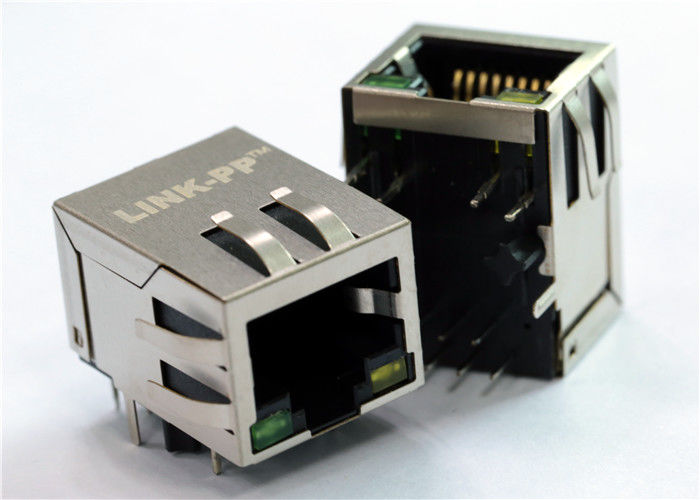

RB1-1A5BAK1A , RDA-1A5BAK1A Single 1000Base-T Rj45 Jack Shielded w/LEDs

Name: RB1-1A5BAK1A , RDA-1A5BAK1A Single 1000Base-T Rj45 Jack Shielded w/LEDs
Brand: LINK-PP
SKU: LPJG0803A25NL
Price: 0.09 USD
Availability: InStock
Rating: 4.9 (172 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJG0803A25NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                single port rj45, rj45 smd connector


Spec.1:	RB1-1A5BAK1A	Sepc.2:	RDA-1A5BAK1A
Connector Type:	RJ45 Female	Applications:	100/1000 Base-T
Mounting Type:	Through Hole	Orientation:	90～ Angle (Right)
Termination:	Solder	Compatible:	LPJG0803A25NL

Spec.1:	RB1-1A5BAK1A
Sepc.2:	RDA-1A5BAK1A
Connector Type:	RJ45 Female
Applications:	100/1000 Base-T
Mounting Type:	Through Hole
Orientation:	90～ Angle (Right)
Termination:	Solder
Compatible:	LPJG0803A25NL

RB1-1A5BAK1A , RDA-1A5BAK1A Single 1000Base-T Rj45 Jack Shielded w/LEDs

RB1-1A5BAK1A , RDA-1A5BAK1A Single 1000Base-T Rj45 Jack Shielded w/LEDs

LPJG0803A25NL Compatible Gigabit Rj45 Female Jack.

Pin to Pin to RB1-1A5BAK1A , RDA-1A5BAK1A. UDE

RB1-1A5BAK1A , RDA-1A5BAK1A Single 1000Base-T Rj45 Jack Shielded w/LEDs 0

1.Operating and Storage Temperature
Operating Temperature : 0°C to +70°C
Storage Temperature : -40°C to +85°C
2. RJ45 specifications
Insulation Resistance 500MΩmin.
Insertion force with the latch depressed 22N max
Removal force with the latch depressed 44N max
Locking Force of Plug Latch : 50N min. @ 60+/-5
sec Durability : 750 cycles
3. Performance and Test Description
Product is designed to meet electrical, mechanical and environmental
performance requirements specified in below table. All tests are
performed at ambient environmental conditions per MIL-STD-1344A
and EIA-364 unless otherwise specified.
4. Packaging and Packing
All parts shall be packaged and packed to protect against physical
damage,corrosion and deterioration during shipment and storage.

5. Transmitter filter & Receiver filter
Type : Balance low pass 100Ωimpedance
Insertion loss : 1~100 MHz -1.0dB max.
Return loss : 1~30 MHz -18dB min. load 100Ω
30~60MHz -16dB min. load 100Ω
60~80MHz -12dB min. load 100Ω
80~100MHz -10dB min. load 100Ω
Common Mode Rejection
@ 1~100 MHz -30dB min.
Cross Talk
@ 1~100 MHz -30dB min.
Inductance @ 100KHz, 0.1V, 8mA DC BIAS
Input (R1-R2), Input(R3-R4), Input (R7-R8), Input(R9-R10): 350 μ H min.
Hi-Pot Test
Input (R1-R2) To Output(C1-C2) : 1500Vac 60s or 2250Vdc 60s
Input(R3-R4) To Output(C3-C6) : 1500Vac 60s or 2250Vdc 60s
Input (R7-R8) To Output(C4-C5) : 1500Vac 60s or 2250Vdc 60s
Input(R9 - R10) To Output(C7 - C8) : 1500Vac 60s or 2250Vdc 60s

Emitting Color λ p (nm) Vf @If=20mA Ir @Vr=5V

Green 565 1.7 ~2.6 V 10μA max.
Yellow 585 1.7 ~2.6 V 10μA max.
Orange 610 1.7 ~2.6 V 10μA max.
