Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: MIC24313-0101-LF3
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4800K-PCS/Month
Specification: |
MIC24313-0101-LF3 |
Cross Part No: |
LPJ1014BHNL |
Base: |
1x10/100Mbps |
Indicator: |
LED ( Green / Yellow ) |
Mounting: |
R/A Shield |
Samples: |
Available Free |
Specification: |
MIC24313-0101-LF3 |
Cross Part No: |
LPJ1014BHNL |
Base: |
1x10/100Mbps |
Indicator: |
LED ( Green / Yellow ) |
Mounting: |
R/A Shield |
Samples: |
Available Free |
| Emitting Color | λp(nm) | VF@IF=20mA | IR @VR=5V |
| Green | 565 | 1.8~2.6V | 10μA max |
| Yellow | 585 | 1.8~2.6V | 10μA max |
NOTES:
1.Designed to support application,such as SOHO(ADSLmodems),LAN-on- Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635

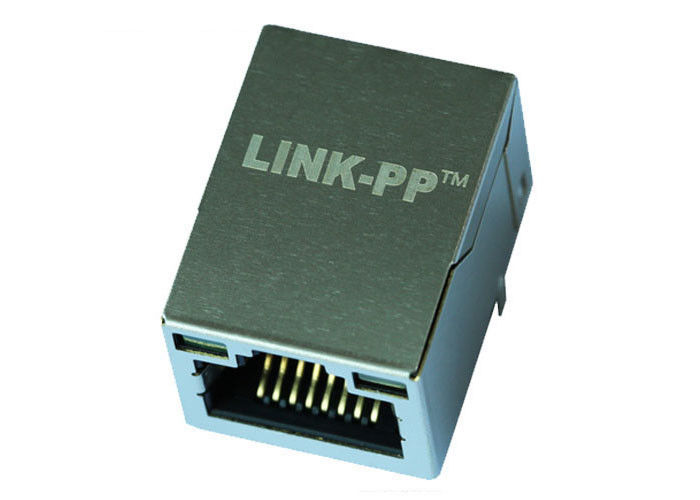

| LINK-PP Part Number | LPJ1014BHNL |
| Designing Model | MIC24313-0101-LF3 |
| Cores per Port | 4 |
| LED Option | GREEN/YELLOW |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 13.45 |
| Package Length (mm) | 25.25 |
| Package Width (mm) | 16.15 |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
