ARJU31B-MCSM-AD-B-GLT2 Modular RJ45 USB Connectors With 1000Mbps Magnetic

China ARJU31B-MCSM-AD-B-GLT2 Modular RJ45 USB Connectors With 1000Mbps Magnetic supplier

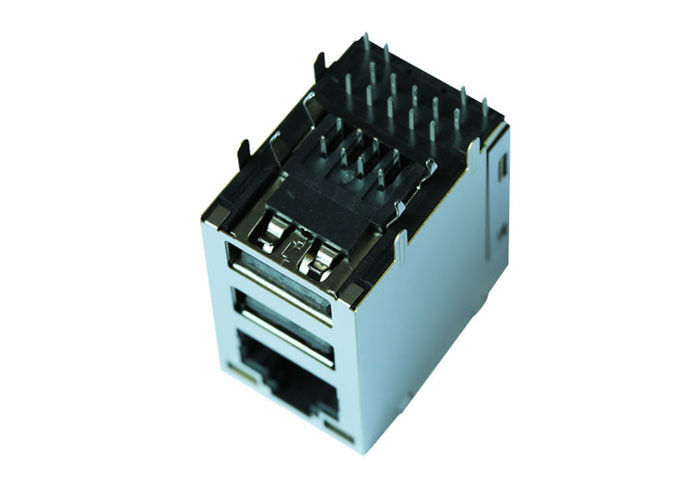

Large Image :  ARJU31B-MCSM-AD-B-GLT2 Modular RJ45 USB Connectors With 1000Mbps Magnetic

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: ARJU31B-MCSM-AD-B-GLT2

Payment & Shipping Terms:

Minimum Order Quantity: 200/500 PCS
Price: Supportive & Competitive
Packaging Details: 50 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 10KGS (1000 pcs) of each carton
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: ARJU31B-MCSM-AD-B-GLT2 Mass Production: LPJUxxxxNL
Application: 10/100 Base-T Termination: Solder
LEDs: Optional Mount Style: DIP / Side Entry

ARJU31B-MCSM-AD-B-GLT2 Modular RJ45 USB Connectors With 1000Mbps Magnetic



Quick Details

  1. 1000Mbps Magnetic RJ45 USB Connector
  2. Meets IEEE 802.3 specification
  3. Documents Available : PDF/3D/Step/IGS/Price/Cross
  4. High performance for maximum EMI suppression
  5. Designing Model: 【ARJU31B-MCSM-AD-B-GLT2
  6. Mass Production Model:【LPJUxxxxNL

Part Number ARJU31B-MCSM-AD-B-GLT2
Turns Ratio ±5% TX 1CT:1CT RX 1CT:1CT
EMI Fingers NO
LED(L/R) Green , Orange - Yellow
Insertion Loss (dB max) -1dB MIN @ 1-100MHz
Return Loss (dBmin @ 100Ω±15Ω) -18dB MIN @ 1-30MHz
-16dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
Crosstalk (dB min) -40dB MIN @ 1-10MHz
-35dB MIN @ 32-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection (dB min) -30dB MIN @ 1-50MHz
-20dB MIN @ 50-100MHz
HiPot @ 1500 Vrms

ARJU31B-MCSM-AD-B-GLT2 Modular RJ45 USB Connectors With 1000Mbps Magnetic



Applications For Terminal User

CompactPCI and PXI Bus Interfaces

Magnetic Shielding

Bus Analyzers and Bus Exercisers

Point of Sale and Kiosk Computers



Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
