ARJU31B-MASD-A-B-HLU2 Tab Up RJ45 USB Connector 3 Port 10/100 Base-T

China ARJU31B-MASD-A-B-HLU2 Tab Up RJ45 USB Connector 3 Port 10/100 Base-T supplier

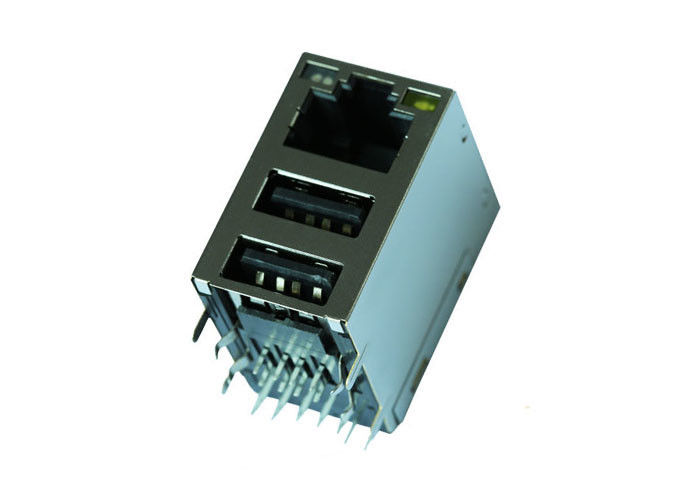

Large Image :  ARJU31B-MASD-A-B-HLU2 Tab Up RJ45 USB Connector 3 Port 10/100 Base-T

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,REACH,RoHS
Model Number: ARJU31B-MASD-A-B-HLU2

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1000
Price: Supportive
Packaging Details: 40pcs/tray,720pcs/carton
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3500000/Month
Contact Now
Detailed Product Description
Specifications: ARJU31B-MASD-A-B-HLU2 Mass Production: LPJUxxxxxNL
Connector Type: RJ45 Female Applications: 10/100 Base-T
Mounting: Through Hole Termination: Solder

ARJU31B-MASD-A-B-HLU2 Tab Up RJ45 USB Connector 3 Port 10/100 Base-T
  1. ARJU31B-MASD-A-B-HLU2 Rj45+2USB Connectors
  2. LPJUxxxxxNL  LINK-PP Equivalent.
  3. 100 Base-T 3 Port RJ45 USB Connector
  4. Free samples are available
  5. Available documents :PDF/3D/ISG/Stp/Step/Datasheet
  6. Size / Dimension :30.52mm X 27.40mm X 18.85mm
1.RJ-45 needs to be matched FCC standard.
2.Complies with requirement of IEEE802.3u standards.
3.RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
4.Size same as RJ-45 connector to save PCB board space.
5.Reduced EMI radiation to improve EMI performance.
6.Design for 10/100 BASE transmission over UTP-5 cable.
7.Compliance with ROHS requirements.
8.Operating temperature range: 0℃ to +70℃/ -40℃ to +85℃
9.Storage temperature range: -25℃ to +85℃.
ARJU31B-MASD-A-B-HLU2 Tab Up RJ45 USB Connector 3 Port 10/100 Base-T



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...


Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time

Main Customer
Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......

EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
