Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 615008140621（LPJE101CNL）
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: The greater the quantity, the better the price
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Enjoy On-time Dispatch Guarantee
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Product Category: |
1x1 RJ45 Connector Through Hole |
Number Of Positions/Contacts: |
8P8C |
Type: |
Horizontal |
Mount: |
THT |
Application Cable System: |
CAT 3 |
Operation Temperture: |
-40℃ Up To +85℃ |
Wave Solder Temperture: |
230℃ To 250℃, 5-10 Sec |
Storage Temperture: |
-40℃ To +85℃ |
Product Category: |
1x1 RJ45 Connector Through Hole |
Number Of Positions/Contacts: |
8P8C |
Type: |
Horizontal |
Mount: |
THT |
Application Cable System: |
CAT 3 |
Operation Temperture: |
-40℃ Up To +85℃ |
Wave Solder Temperture: |
230℃ To 250℃, 5-10 Sec |
Storage Temperture: |
-40℃ To +85℃ |

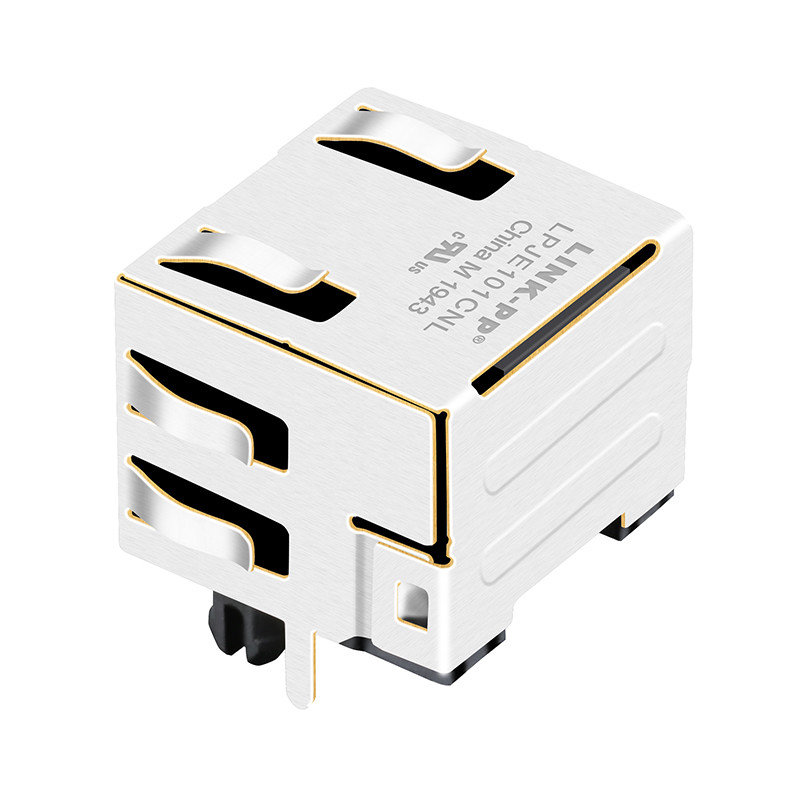

The LPJE101CNL is alternative for Würth Elektronik WR-MJ Modular Jacks. It is designed for local data communication applications. This Horizontal RJ45 Jack features a single port and latch-up orientations design. Shielded Housing with EMI Fingers protects against electromagnetic interference. LINK-PP offers a broad range of RJ45 connectors that comply with Ethernet and communication standards. The series also includes through-hole and surface mount versions in single or multiport styles.
| Name | PCB Mount RJ45 Connector |
|---|---|
| Gender |
Jack (Female) |
| Number of Ports | 1x1 Port |
| Tab Direction |
Tab Up |
| Orientation | 90° Angle (Right) |
| Magnetics | Without |
| Mounting Style | Through Hole |
| LED Option | No |
| Working Voltage | AC120V |
| Withstanding Voltage | AC1000V 50Hz or 60Hz 1min |
| Contact Resistance |
20 mΩ |
| Insulation Resistance | 500 MΩ MIN @ DC500 V |
| Durability | 600 mating circles MIN |
| Packaging | Tray |
| BST Circuit | Yes |
| AutomDX | Yes |
| Material Properties | |
| Hi-Pot | 1500 Vrms |
| Insulator Material | Flammability Rating UL94 V-0 PBT |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Selective Gold Flash |
| Contact Type | Stamped |
| Shielding Material | Bronze |
| Shielding Plating | Nickel |
Comes as part of LINK-PP's dual RJ45 connectors with quality assurance and after-sales support. Each connector undergoes rigorous testing and inspection during the manufacturing process. Includes incoming material inspection, resistor and capacitor inspection, welding evaluation, and extensive testing of LED components. LINK-PP offers warranty service to give customers peace of mind. This warranty covers any manufacturing defects. Our support team is always available to help you with any concerns, providing expert guidance. For long-term considerations, these connectors are rated for a peak wave soldering temperature of +260°C. Durability and longevity are ensured even under harsh welding conditions.
INSULATOR: PBT
FLAMMABILITY RATING: UL94-V0
COLOR: BLACK
CONTACT MATERIAL: PHOSPHOR BRONZE
CONTACT TYPE: STAMPED
CONTACT PLATING: GOLD
SHIELDING: BRONZE NI PLATED
QUALITY CLASS: 500 MATING CYCLES
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 TO 85°C
COMPLIANCE: LEAD-FREE AND ROHS
ELECTRICAL
CURRENT RATING: 1.5A
WORKING VOLTAGE: 120VAC
INSULATOR RESISTANCE: >1000 MΩ
DIELECTRIC WITHSTANDING VOLTAGE: 1000 VAC/MIN
CONTACT RESISTANCE: 20 mΩ MAX
STANDARD
CERTIFIED: E324776
SOLDERING:
JEDEC LEAD-FREE WAVE SOLDERING PROCESS
PACKAGING: TRAY
