Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: JXC0-1011NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
JXC0-1011NL |
Equivalent: |
LPJxxxxxNL |
Shield: |
Shielded |
Application: |
PC Mainboard, SDH, PDH, IP Phone |
Mounting: |
Through Hole |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Spec: |
JXC0-1011NL |
Equivalent: |
LPJxxxxxNL |
Shield: |
Shielded |
Application: |
PC Mainboard, SDH, PDH, IP Phone |
Mounting: |
Through Hole |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |

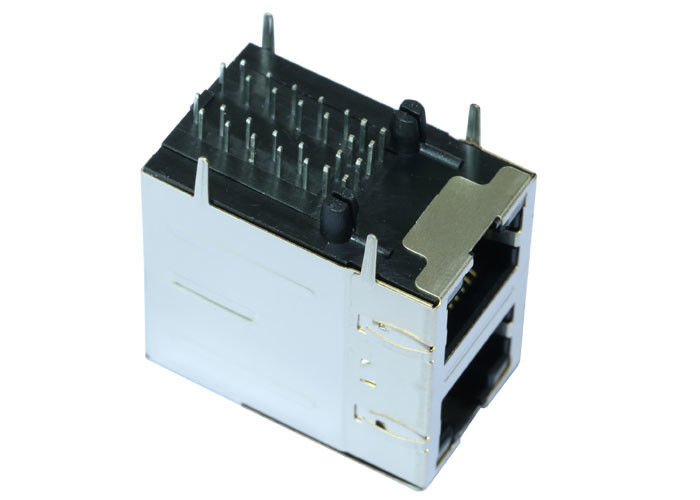

| Part Number | JXC0-1011NL |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Temperature | -40 TO + 85℃ |
| Diodes | NO DIODES |
| LED Option | GREEN,YELLOW / GREEN |
| Shielding | Shielded, EMI Finger |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Latch | TAB UP / DOWN |
| Number of Ports | 2X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 26.67 |
| Package Length (mm) | 34.29 |
| Package Width (mm) | 19.85 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
