E6588-G52165-L Stacked RJ45 MOD JACK 8P8C 2x1 Shielded LPJE17209CNL

China E6588-G52165-L Stacked RJ45 MOD JACK 8P8C 2x1 Shielded LPJE17209CNL supplier
E6588-G52165-L Stacked RJ45 MOD JACK 8P8C 2x1 Shielded LPJE17209CNL supplier E6588-G52165-L Stacked RJ45 MOD JACK 8P8C 2x1 Shielded LPJE17209CNL supplier

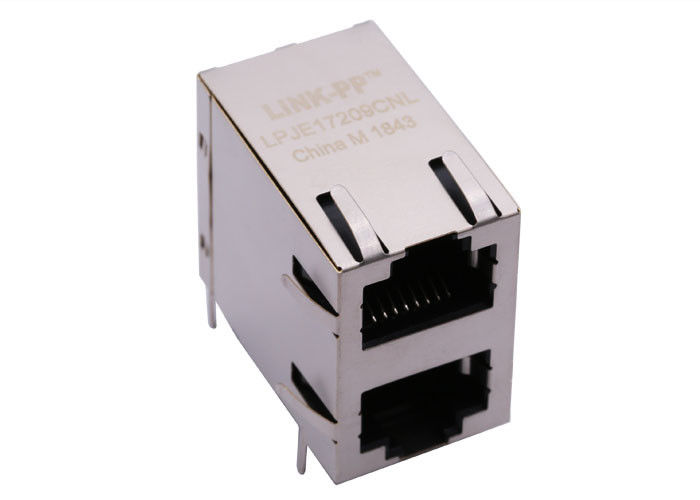

Large Image :  E6588-G52165-L Stacked RJ45 MOD JACK 8P8C 2x1 Shielded LPJE17209CNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: E6588-G52165-L

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 5000
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Spec: E6588-G52165-L Family: 2x1 Stacked RJ45
Application: HUB, PC Card, Switch, Router Etc Mounting: Side Entry (Right Angle)
Category: Multi-port RJ45 File: PDF/3D/Step/IGS/Price/Cross

E6588-G52165-L Stacked RJ45 MOD JACK 8P8C 2x1 Shielded LPJE17209CNL

Quick Details:

1. Gender: female Socket to Ethernet
2. 2X1 Port stacked RJ45 Jack
3. Without Magnetic RJ45 Jack
4. E6588-G52165-L Pin to Pin Compatible


Product parameters:



2X1 Port 8P8C Cat5 RJ45 Double Deck PCB Jack, Without LED,Tab Up/Down,RoHS
LINK-PP Part Number LPJE17209CNL
Pulse Part Number
E6588-G52165-L
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option Without LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.994
Package Height (mm) 25.25
Package Length (Inches) 1.110
Package Length (mm) 28.20
Package Width (Inches) 0.681
Package Width (mm) 17.29
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed Without Magnetics
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

20 years production experience,
1100 staff,
100% test
Flexible delivery time
E6588-G52165-L Stacked RJ45 MOD JACK 8P8C 2x1 Shielded LPJE17209CNL

FAQ

Q: How long Delivery time ?



A: RJ45/RJ11 Series: 12~20 days



SFP Series: 25~30 Days USB Series: 7~15 days



Connector: 7~15 days



Q: How can I get quotation?



A:It is helpful for us to recommend the right item if we know your detail requirements



(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).



Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.



Q: Can I have samples?



A: Samples are available for evaluation.



Q: Is OEM & ODM available?



A: OEM&ODM are welcome.
