SI-46020-F Vertical RJ45 Jack With 10/100 Base-T Integrated Magnetic Shielded

China SI-46020-F Vertical RJ45 Jack With 10/100 Base-T Integrated Magnetic Shielded supplier
SI-46020-F Vertical RJ45 Jack With 10/100 Base-T Integrated Magnetic Shielded supplier SI-46020-F Vertical RJ45 Jack With 10/100 Base-T Integrated Magnetic Shielded supplier

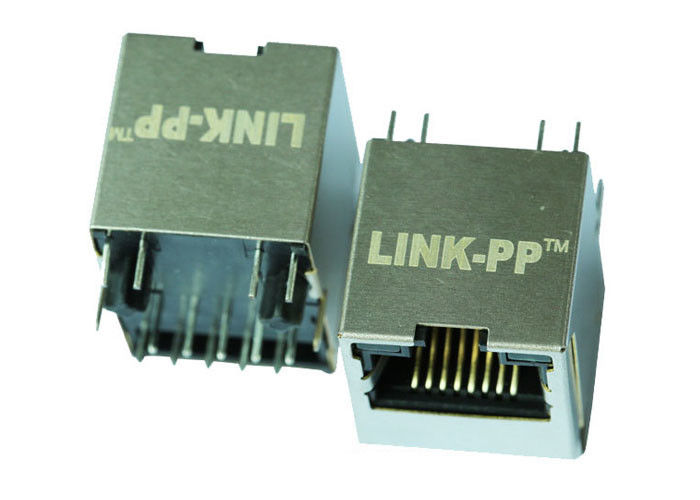

Large Image :  SI-46020-F Vertical RJ45 Jack With 10/100 Base-T Integrated Magnetic Shielded

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: SI-46020-F

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: 0.5~10 USD/PCS
Packaging Details: Optional
Delivery Time: 3-30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: SI-46020-F PIN TO PIN: LPJxxxxxxNL
Speed: 10/100 BASE-T Temperature: -40 TO +85℃
File: PDF/3D/ISG/Stp/Step/Datasheet Samples: Free

SI-46020-F Vertical RJ45 Jack With 10/100 Base-T Integrated Magnetic Shielded



Specifications
Vertical RJ45 Connector with 10/100 Base-T Integrated Magnetics ,Green/Green LED,RoHS
LINK-PP Part Number LPJxxxxNL
Belfuse Part Number SI-46020-F
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option Green/Green
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 17.02
Package Length (mm) 17.02
Package Width (mm) 16.26
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Speed 10/100 BASE-T
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



BeagleBone Black




LINK-PP RJ45  Designed for BeagleBone Black of Texas Instrument

http://www.ti.com/tool/beaglebk#0

a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.





                       LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti



SI-46020-F Vertical RJ45 Jack With 10/100 Base-T Integrated Magnetic Shielded
