Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP1102NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item: |
PX-5111S |
Compatible: |
LP1102NL |
Ethernet: |
10/100Base-Tx |
Samples: |
Free |
Cross Rf: |
PX-5111S = > LP1102NL |
Item: |
PX-5111S |
Compatible: |
LP1102NL |
Ethernet: |
10/100Base-Tx |
Samples: |
Free |
Cross Rf: |
PX-5111S = > LP1102NL |

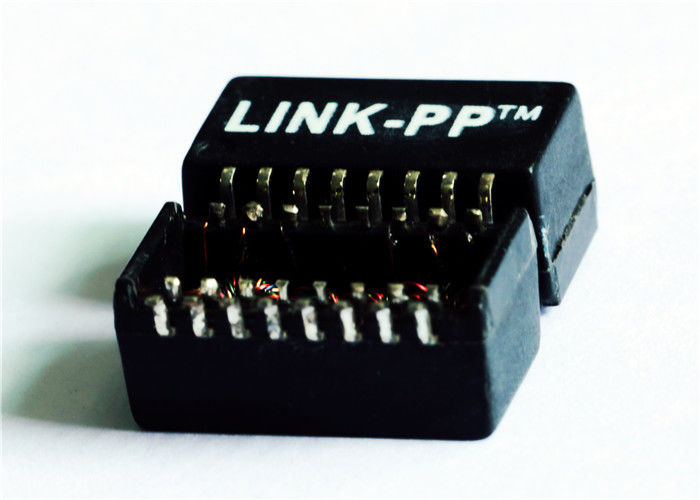

IC grade transfer-molded package with stands
Compliant with IEEE 802.3u and ANSI X3.263
standards including 350uH OCL with 8mA bias
Cross reference to Pulse H1102
Electrical Specifications @25 o C:
1. Insertion loss:
@0.1~100MHz: -1.1dB Max
2. Retum loss:
@30MHz: -18dB Min
@60MHz: -14dB Min
@80MHz: -11.5dB Min
3. Cross Talk:
@30MHz: -45dB Min
@60MHz: -40dB Min
@100MHz: -35dB Min
4. Differential to Common Mode Rejection:
@30MHz: -42dB Min
@50MHz: -37dB Min
@100MHz: -33dB Min
5. Turn Ratio:
@50KHz 0.5V: 1CT:1CT+ _2%
6. Inductance:
@100KHz, 0.1VDC, 8mA: 350uH Min
7. Hi-Pot: 1500VAC, 0.5mA, lsec
