857351001 1000 Base-T Magnetics Stacked RJ45 Jack 2x4 With POE+ LPJG47047-9AFNL

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

857351001 1000 Base-T Magnetics Stacked RJ45 Jack 2x4 With POE+ LPJG47047-9AFNL

China 857351001 1000 Base-T Magnetics Stacked RJ45 Jack 2x4 With POE+ LPJG47047-9AFNL supplier
857351001 1000 Base-T Magnetics Stacked RJ45 Jack 2x4 With POE+ LPJG47047-9AFNL supplier 857351001 1000 Base-T Magnetics Stacked RJ45 Jack 2x4 With POE+ LPJG47047-9AFNL supplier

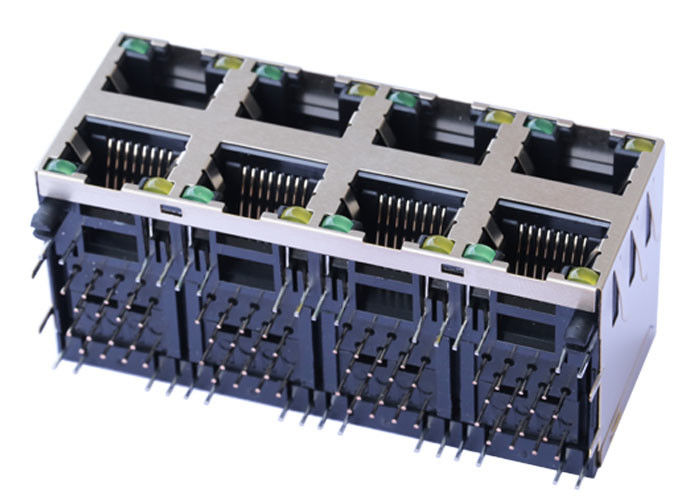

Large Image :  857351001 1000 Base-T Magnetics Stacked RJ45 Jack 2x4 With POE+ LPJG47047-9AFNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: 857351001

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 2K, 20K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 6000K/month
Contact Now
Detailed Product Description
Spec: 857351001 Port: 2x4 Female Rj45
Magnetics: With POE+ Mounting: Side Entry (Right Angle)
Cross Ref: LPJG47047-9AFNL File: PDF/3D/ISG/Stp/Step/Datasheet

857351001 1000 Base-T Magnetics Stacked RJ45 Jack 2x4 With POE+ LPJG47047-9AFNL



2x4 Port 8P8C RJ45 Female Connector with 10/100/100Base-T Magnetics,With Green/Green LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJG47047-9AFNL
Part Number 857351001
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NO
Diodes NO DIODES
LED Option GREEN/GREEN
Latch TAB UP/TAB DOWN
Number of Ports 2X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 25.79
Package Length (mm) 38.53
Package Width (mm) 59.18
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100/1000 Base-T
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
