Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008,Reach
Model Number: B56LED(11-10)W-C622-B52
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Part Number: |
B56LED(11-10)W-C622-B52 |
Application-Lan: |
Ethernet(NoN PoE) |
Gender: |
Female,Receptacle |
Plating: |
Gold Or Tin Plate,OEM |
RJ45 Connector: |
1 X 4 Port Muti-port,Custom |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
B56LED(11-10)W-C622-B52 |
Application-Lan: |
Ethernet(NoN PoE) |
Gender: |
Female,Receptacle |
Plating: |
Gold Or Tin Plate,OEM |
RJ45 Connector: |
1 X 4 Port Muti-port,Custom |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Description:

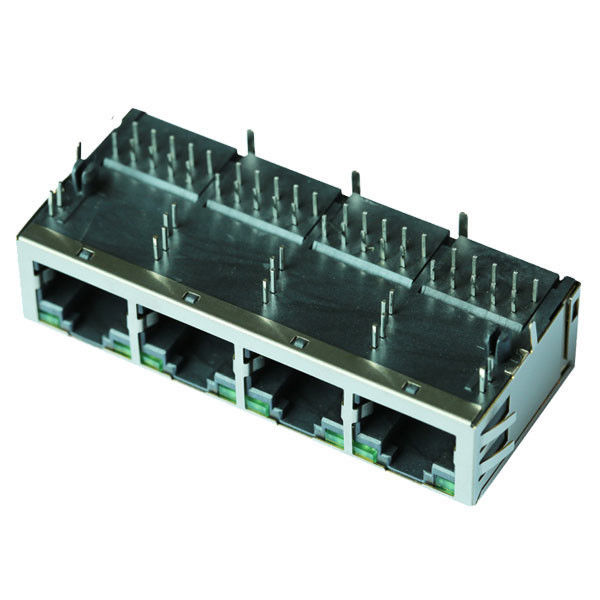

| Shielded 1x4 Port Magjack RJ45 Connector without Integrated Magnetics,Green/Orange&Green LED,Tab UP,RoHS | |
| LINK-PP Part Number | LPJE401A26NL |
| Other Part Number | B56LED(11-10)W-C622-B52 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | - |
| Diodes | NO DIODES |
| LED Option | Green/Orange&Green LEDs |
| Latch | TAB UP |
| Number of Ports | 1X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.516 |
| Package Height (mm) | 13.1 |
| Package Length (Inches) | 0.620 |
| Package Length (mm) | 15.75 |
| Package Width (Inches) | 2.510 |
| Package Width (mm) | 63.75 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | without magnetics |
| Temperature | -40 TO 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
