HL-5202-88-111xxx Shielded Vertical 8P8C RJ45 Female Connector LPJE601XDNL

China HL-5202-88-111xxx Shielded Vertical 8P8C RJ45 Female Connector LPJE601XDNL supplier
HL-5202-88-111xxx Shielded Vertical 8P8C RJ45 Female Connector LPJE601XDNL supplier HL-5202-88-111xxx Shielded Vertical 8P8C RJ45 Female Connector LPJE601XDNL supplier

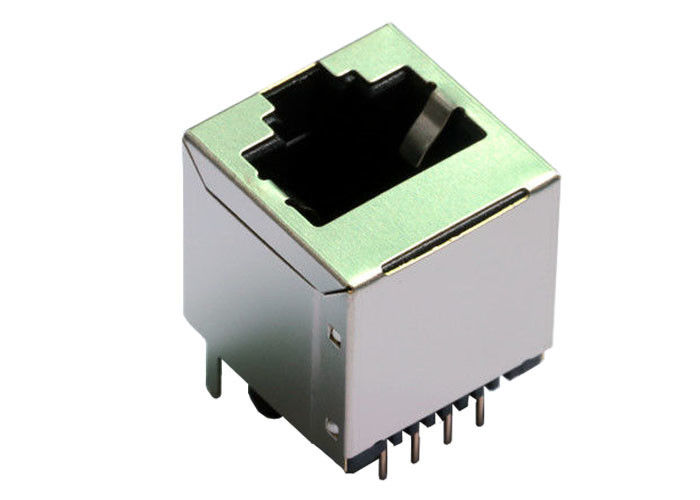

Large Image :  HL-5202-88-111xxx Shielded Vertical 8P8C RJ45 Female Connector LPJE601XDNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001 Reach
Model Number: HL-5202-88-111xxx

Payment & Shipping Terms:

Minimum Order Quantity: 1000 / 5K,50K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock or 2weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Spec: HL-5202-88-111xxx Alternate: LPJE601XDNL
Ethernet: UTP Cat5,5E Application-Lan: Ethernet(NoN PoE)
Temperature: -40 TO + 85 Sample: Free

HL-5202-88-111xxx Shielded Vertical 8P8C RJ45 Female Connector LPJE601XDNL

Vertical 8P8C RJ45 Female Connector without Integrated Magnetics,Without LED,RoHS
LINK-PP Part Number LPJE601XDNL
Other Part Number HL-5202-88-111xxx
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NON
Diodes NO DIODES
LED Option without LEDS
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.646
Package Height (mm) 16.40
Package Length (Inches) 0.657
Package Length (mm) 16.70
Package Width (Inches) 0.638
Package Width (mm) 16.20
Pin Type Vertical
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed NON
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

HL-5202-88-111xxx Shielded Vertical 8P8C RJ45 Female Connector LPJE601XDNL
Metal Modular Jacks Rj45 With 10 / 100m , Vertical Rj45 Connector

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem


Competitive Advantage:

16 years production experience,
1100 staff,
100% test
Flexible delivery time


Our Services
Customer Satisfaction:Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.

Payment Terms:There are many payment methods available such as TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Return Policy:If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay addtional shipping fees incurred and items returned should be kept in their original status.

Feedback:Since your feedback is very important to our busines's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !
FAQ

1.When will you ship the goods out if i send payment now?
Usually ,We will delivery out them 2-3 Week later after payment recevied.if the PO is very big ,we need more time to produce .
2.Is your goods tested before shipping?
Yes,we test every item at least 3 times before shipping,please do not worry about the quality problems,you can buy with confidence.
3.I am new buyer ,how can i buy from you?
You tell us what you need ,we send you offer,if you think the offer is good,our sales send you company invoice including all details such as payment terms ect ,then we ship to you
