Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJM11B3-805-JJ-EW4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Specifications: |
ARJM11B3-805-JJ-EW4 |
P N: |
LPJXXXXXNL |
Schematic: |
8 Coils,1CT:1CT |
Speed: |
2.5GMbps X 1 |
Operating Temperature: |
-40°C ~ 85°C |
LED Color: |
Green, Yellow - Green, Yellow |
Specifications: |
ARJM11B3-805-JJ-EW4 |
P N: |
LPJXXXXXNL |
Schematic: |
8 Coils,1CT:1CT |
Speed: |
2.5GMbps X 1 |
Operating Temperature: |
-40°C ~ 85°C |
LED Color: |
Green, Yellow - Green, Yellow |
Part Status | Active | |
---|---|---|

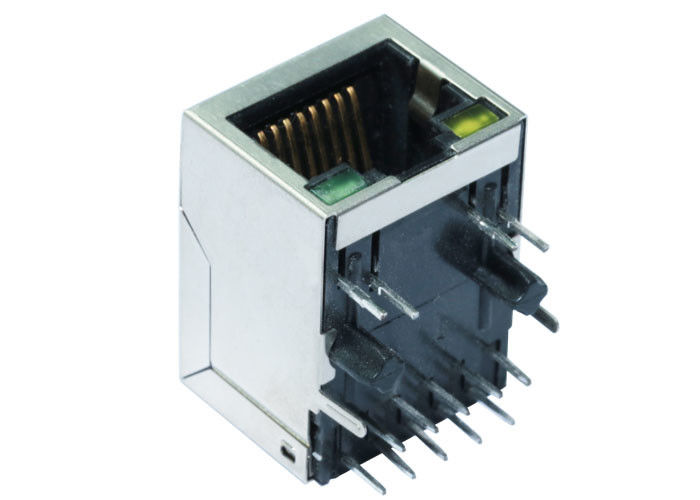

Connector Type | RJ45 | |
Number of Ports | 1 | |
Number of Rows | 1 | |
Applications | 2.5G Base-T, AutoMDIX | |
Mounting Type | Through Hole | |
Orientation | 90° Angle (Right) | |
Termination | Solder | |
Height Above Board | 0.535" (13.59mm) | |
LED Color | Green, Yellow - Green, Yellow | |
Number of Cores per Jack | 8 | |
Shielding | Shielded | |
Features | Board Lock | |
Tab Direction | Down | |
Contact Material | - | |
Contact Finish | Gold | |
Operating Temperature | -40°C ~ 85°C | |
Contact Finish Thickness | 30.0µin (0.76µm) |
