Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

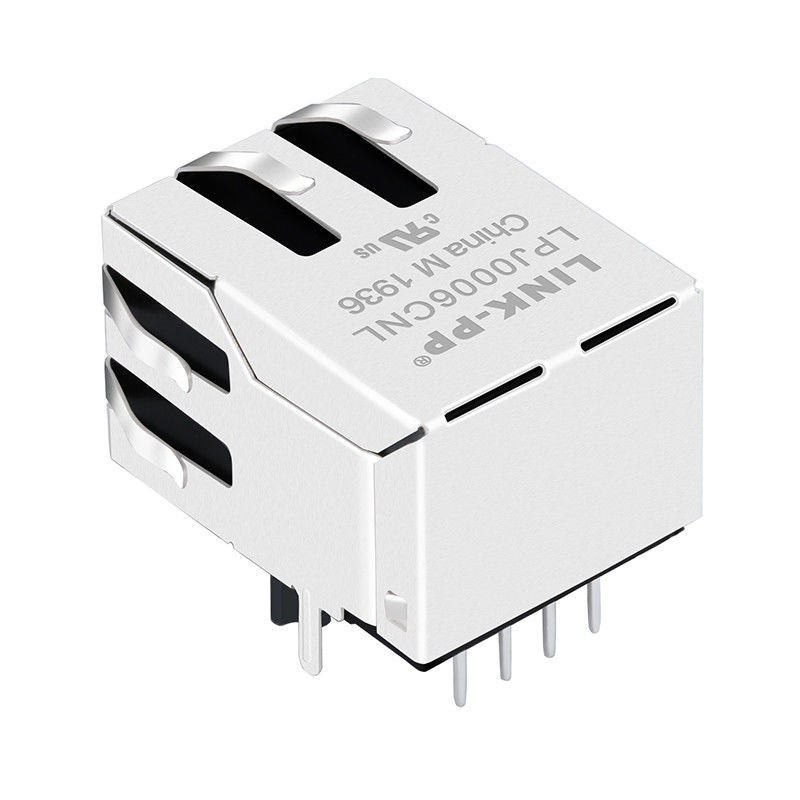

Model Number: LPJ0006CNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Specification: |
LPJ0006CNL |
Part No: |
LPJ0006CNL |
Mounting: |
Side Entry (Right Angle) |
Jack Type: |
RJ45 |
Shielded / Filter: |
Yes |
Gender: |
Gender |
Specification: |
LPJ0006CNL |
Part No: |
LPJ0006CNL |
Mounting: |
Side Entry (Right Angle) |
Jack Type: |
RJ45 |
Shielded / Filter: |
Yes |
Gender: |
Gender |
| Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT | |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias | |
| Insertion Loss | -1.0dB MAX @ 1-65MHz | |
| Return Loss | -20dB MIN @ 1-10MHz | |
| -16dB MIN @ 10-30MHz | ||
| -12dB MIN @ 30-60MHz | ||
| -10dB MIN @ 60-100MHz | ||
| Cross talk | -40dB MIN @ 1-30MHz | |
| -35dB MIN @ 30-60MHz | ||
| -30dB MIN @ 60-100MHz | ||
| Common Mode Rejection | -30dB MIN @ 1-50MHz | |
| -20dB MIN @ 50-150MHz | ||
| Hipot Test | 1500Vrms MIN | |
| Operating Temperature Range | 0℃ TO 70℃. |
