Main PN: TG110-3506NX LINK-PP PN: LP44006NL
Speed: 10/100 BASE-TX Port: Dual Port
Pin: 40 Cores: 10

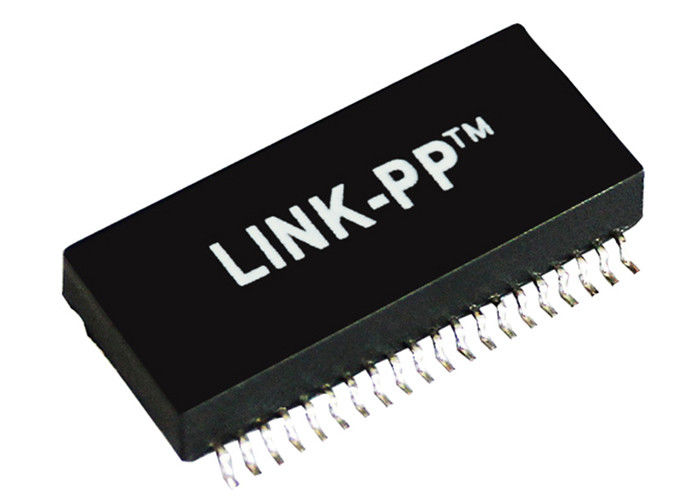

 Lan Ethernet Transformer , Turns Ratio 50KHz 0.5V TG110-3506NX

Quick Details

1. Dual Port Lan Transformer

2. ColiStructure: Toroidal

3. 100base-t transformer

4. SMD, 16 pins


10 / 100 BASE-TX Dual Port Lan Transformer With 40 Pins

Description:

Single Port 100 Base-t ETHERNET MAGNETIC TRANSFORMERS



Application LAN ETHERNET(NON PoE)
AutomDX YES
Comment RoHS Compliant LP44006NL
Configuration RX T,C
Configuration TX T,C
Construction TRANSFER MOLD
Cores Per Port 10
Number of Ports DUAL
PCB NO PCB
Package SMT
Package Height (Inches) 0.244or other
Package Height (mm) 6.20 or other
Package Length (Inches) 1.125 or other
Package Length (mm) 28.58 or other
Package Width (Inches) 0.63 or other
Package Width (mm) 16.00 or other
RoHS Compliant YES-RoHS-6
Speed 10/100 BASE-TX
Temperature 0 TO 70
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Electrical Specifications(25):

1. Turns Ratio50KHz, 0.5V

      Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

            60MHz: -35dB Min

            100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min





Applications:



Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
