24 Pins Lan Isolation Transformer 100 / 1000 BASE - TX 24SH10410 HF

China 24 Pins Lan Isolation Transformer 100 / 1000 BASE - TX 24SH10410 HF supplier
24 Pins Lan Isolation Transformer 100 / 1000 BASE - TX 24SH10410 HF supplier 24 Pins Lan Isolation Transformer 100 / 1000 BASE - TX 24SH10410 HF supplier

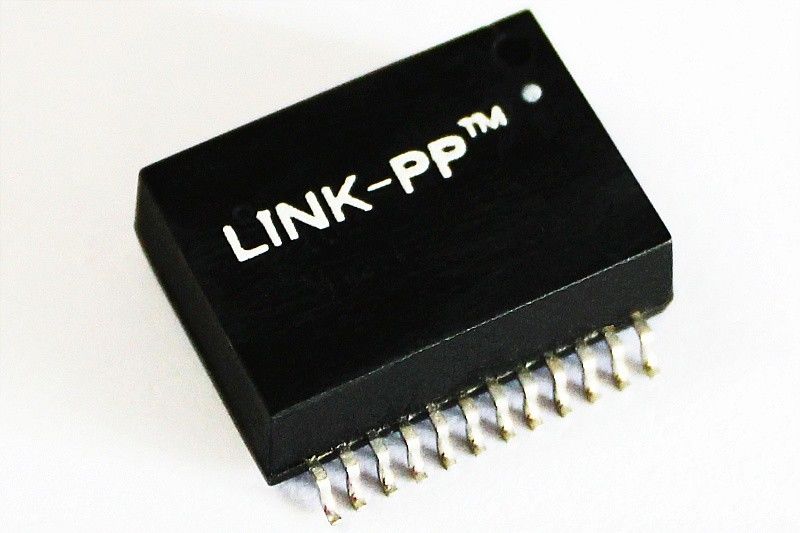

Large Image :  24 Pins Lan Isolation Transformer 100 / 1000 BASE - TX 24SH10410 HF

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 24SH10410 HF

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Part Number: 24SH10410 HF Cross PN: LP5004NL
Package: SMD Cores Per Port: 8
Temperature: 0 TO 70 Application: LAN ETHERNET(NON PoE)

24 Pins 100/1000BASE-TX Lan Toroidal Transformer 24SH10410 HF

Quick Details

1. Single Port Lan Transformer

2. ColiStructure: Toroidal

3. 1000base-t transformer

4. SMD, 24 pins


10 / 100 / 1000BASE-TX Single Port Lan Transformer With 24 Pins

Description:

Single Port Gigabit ETHERNET MAGNETIC TRANSFORMERS



Application LAN ETHERNET(NON PoE)
AutomDX YES
Comment RoHS Compliant LP5004NL
Configuration RX T,C
Configuration TX T,C
Construction TRANSFER MOLD
Cores Per Port 8
Number of Ports SINGLE
PCB NO PCB
Package SMD
Package Height (Inches) 0.260 or other
Package Height (mm) 6.60 or other
Package Length (Inches) 0.697 or other
Package Length (mm) 17.70 or other
Package Width (Inches) 0.65 or other
Package Width (mm) 16.51 or other
RoHS Compliant YES-RoHS-6
Speed 10/100/1000BASE-TX
Temperature 0 TO 70
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Main P/N LP5004NL, etc



Electrical Specifications(25):

1. Turns Ratio50KHz, 0.5V

      Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

            60MHz: -35dB Min

            100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min

Applications:

Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
