Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 1775855-1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part No: |
1775855-1 |
Made In China: |
SM-LPJE305DNL |
Shielding: |
Shielded |

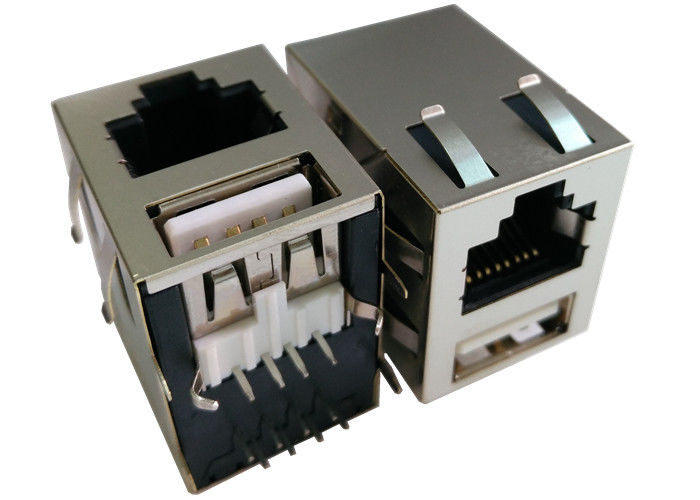

Connector Type: |
Jack With USB A |
Positions: |
8p8c |
LED: |
Without |
Part No: |
1775855-1 |
Made In China: |
SM-LPJE305DNL |
Shielding: |
Shielded |
Connector Type: |
Jack With USB A |
Positions: |
8p8c |
LED: |
Without |
NOTES:Electrical:
1.Voltage:125VAC RMS.
2.Current Rating:1.5A.
3.Contact Resistance:30 Millohms max.
4.Insulation Resistance:500 Megohms Min @500VDC.
5.Dielectric Strength:1000VAC RMS 50Hz 1Min.
6.RJ-45 Contact plating: Gold 6 micro-inches min.
In contact area
USB Contact plating: Gold flash
7.Gold Plating:(Gold Flash;1.5;3;6;15;30;50)U" Inch
8.Wave solder temperture: 230℃ to 250℃,5～10 Sec.
MECHANICAL:
1.Housing Material:Glass Filled Polyester UL94V-0.
2.Contact Material:Phosphor Bronze %%C 0.45mm.
3.Plating:Gold Plating Over Nickel.
4.Operating:750 Cycles Min.
5.Shield 0.23mm Thickness Copper Alloy With Nickel
Plated.
6.PCB Retention Pre-Solder:1 LB Min.
Environmental:
1.Temperature Range:-45℃～+85℃.
2.Relative Humidity:90～95%(40±2℃)
