LPJD0055BANL Vertical Mount RJ45 Magjack Connector HR951155A

Name: LPJD0055BANL Vertical Mount RJ45 Magjack Connector HR951155A
Brand: LINK-PP
SKU: LPJD0055BANL
Price: 0.09 USD
Availability: InStock
Rating: 5 (151 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJD0055BANL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: Tray, Tape & Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000K/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                stacked rj45 connectors, modular jacks rj45


Spec:	LPJD0055BANL	Cross:	HR951155A
Family:	Vertical Magjack Rj45	Speed:	10/100Mbps
Samples:	3D -STEP ,PDF

Spec:	LPJD0055BANL
Cross:	HR951155A
Family:	Vertical Magjack Rj45
Speed:	10/100Mbps
Samples:	3D -STEP ,PDF

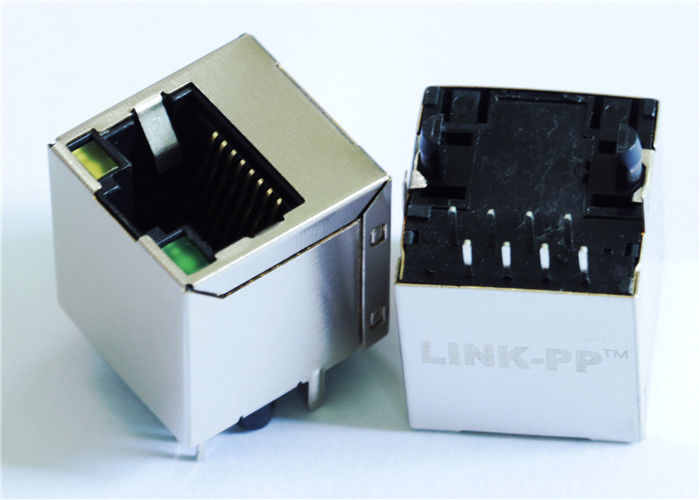

LPJD0055BANL Vertical Mount RJ45 Magjack Connector HR951155A

LPJD0055BANL Vertical Mount RJ45 Magjack Connector HR951155A

1.10/100 Base-T LPJD0055BANL Top Entry(Vertical)

2.1X1 Magnetic rj45 female Jack HR951155A Compatible

3.Through hole RJ45 modular jack

1 x 1 Port RJ45 Modular Jack , 100Base RJ 45 Modular Connector

Description:

1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3u

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Top Entry(Vertical)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time
