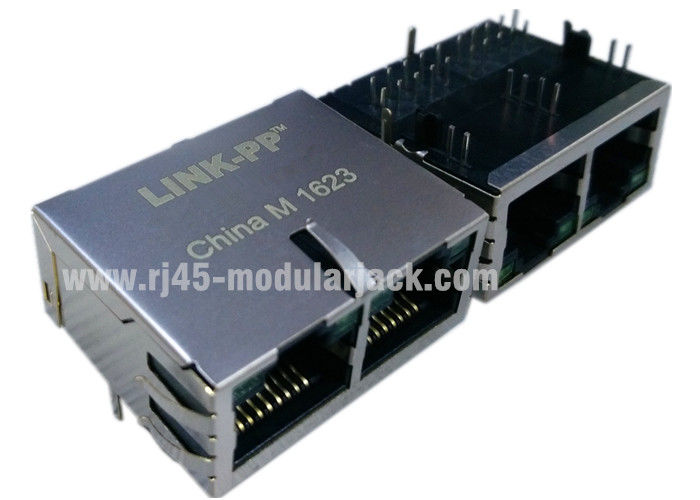

2x Rj45 10/100/1000Mbps Pulse JG0-0023NL Equivalent Cross , Gigabit Dual RJ45

Name: 2x Rj45 10/100/1000Mbps Pulse JG0-0023NL Equivalent Cross , Gigabit Dual RJ45
Brand: LINK-PP
SKU: JG0-0023NL
Price: 0.11 USD
Availability: InStock
Rating: 4.5 (137 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: SGS, UL,CE, ISO9001:2008,REACH

Model Number: JG0-0023NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                multi port connector, dual rj45 jack


Specification:	JG0-0023NL	Part No:	LPJG28851AFNL
Ethernet:	2 X 10/100/1000Mbps	Gender:	Female,Receptacle
Indicator:	Green LED Flexible	Samples:	Available

Specification:	JG0-0023NL
Part No:	LPJG28851AFNL
Ethernet:	2 X 10/100/1000Mbps
Gender:	Female,Receptacle
Indicator:	Green LED Flexible
Samples:	Available

2x Rj45 10/100/1000Mbps Pulse JG0-0023NL Equivalent Cross , Gigabit Dual RJ45

2x Rj45 10/100/1000Mbps LPJG28851AFNL
Pulse JG0-0023NL Equivalent
1X2 Tab-up Gigabit Rj-45
Through hole RJ45 modular jack Dual Port
25.4 mm length RJ45 Magjack

10/100/1000 Base-T RJ45 1xN Tab-UP Integrated Connector Module

Electrical Specifications @25℃
1.OCL(100KHz,0.1V,8mA DC BIAS):
350uH MIN
2.Insertion Loss:
1～100MHz:-1.0dB MAX
3.Return Loss:
1～10MHz:-20dB MIN.load 100Ω%%P15Ω
30MHz:-16dB MIN.load 100Ω%%P15Ω
60～80MHz:-12dB MIN.load 100Ω%%P15Ω
4.Crosstalk:
1～10MHz:-40dB MIN
30～60MHz:-35dB MIN
60～100MHz:-30dB MIN
5.Common Mode Rejection:
1～125MHz:-30dB MIN
125～500MHz:-20dB MIN
6.HiPot Test: 1500Vrms MIN
7.Operating Temperature: 0℃ TO +70℃.
