Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Original: |
2170805-2 |
Connector Type: |
QSFP28 |
Part Status: |
Active |
Connector Style: |
Cage, Ganged (1 X 2) |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
2170805-2 |
Connector Type: |
QSFP28 |
Part Status: |
Active |
Connector Style: |
Cage, Ganged (1 X 2) |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
| Part Number | 2170805-2 |
|---|---|
| Manufacturer | LINK-PP |
| Part Status | Active |
| Connector Type | QSFP28 |
| Connector Style | Cage, Ganged (1 x 2) |
| Number of Ports | 1X2 port |
| Number of Rear EONs per Port Column | 1 |
| Included Lightpipe | No |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) (Gb/s) | 28 |
| Features | EMI Shielded |
| Operating Temperature Range | -40 – 85 °C |
| PCB Thickness (Recommended) | 1.57 mm [ .062 in ] |
| Tail Length | 2.05 mm [ .081 in ] |
| Cage Material | Nickel Silver |
| EMI Containment Feature Type | Internal/External EMI Springs |
| Circuit Application | Signal |
| Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||
2170805-2 TE QSFP28 1x2 Cage Connector :

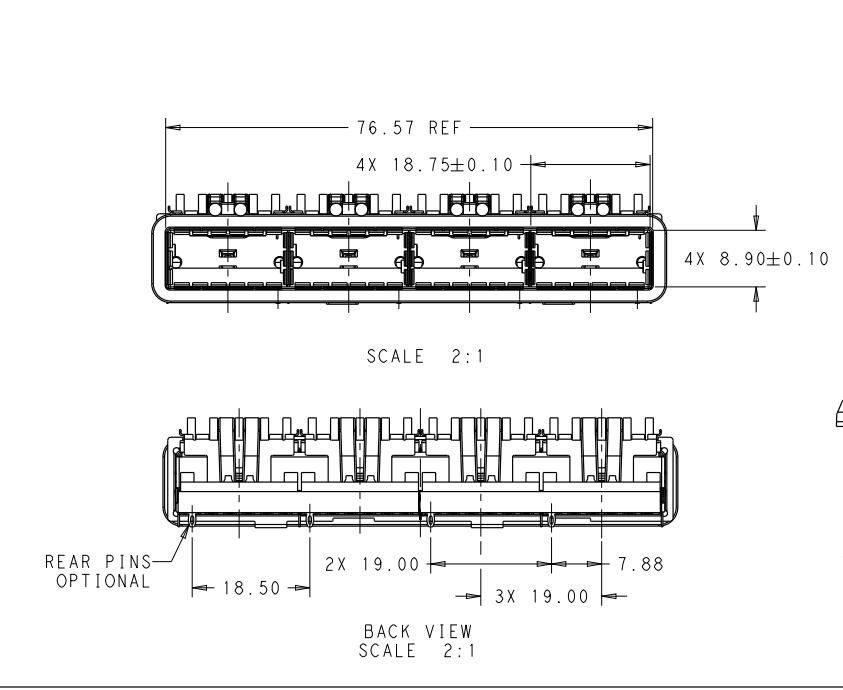

2170805-2 QSFP28 1x2 Cage Connector Dimension:
| 2007464-3 | 2338495-1 | 2170737-1 |
| 2007263-1 | 2-2338495-1 | 2227727-1 |
| 2227729-1 | 2246040-1 | 2007668-1 |
| 2315853-2 | 2170112-2 | 2170805-2 |
| 2246041-1 | 2007093-1 | 2007178-1 |
What Is QSFP28 ?
QSFP28 (quad small form-factor pluggable 28) is designed for 100G applications.
It offers four channels of high-speed differential signals with data rates ranging from
25 Gbps up to potentially 40 Gbps, and finally, meet 100 Gbps Ethernet (4×25 Gbps)
and 100 Gbps 4X InfiniBand Enhanced Data Rate (EDR) requirements. Note that,
QSFP28 can do 4x25G and 2x50G breakout connection, or 1x100G depending on
the transceiver type that is used.
