Model Number: XPJH-01D-1-D25-110
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 60PCS/Tray,20 Trays=37*30*30CM=1200PCS=11KG/Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specification: |
XMH-01-1-PP1-111-1P0 |
Part No: |
LPJ1149AGNL |
Hi-pot: |
1500V |
Indicator: |
LEDs |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
XMH-01-1-PP1-111-1P0 |
Part No: |
LPJ1149AGNL |
Hi-pot: |
1500V |
Indicator: |
LEDs |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

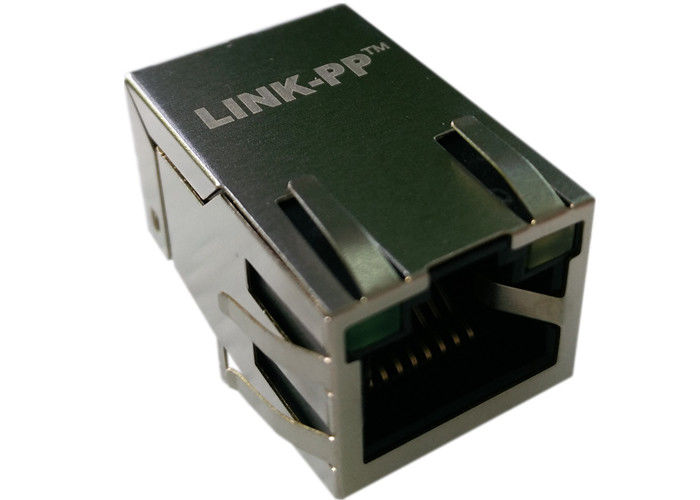

| LINK-PP Part Number: | LPJ1149AGNL |
| Cross Part Number: | XPJH-01D-1-D25-110 / XMH-01-1-PP1-111-1P0 |
| Speed: | 10/100 Base-T |
| Number of Ports: | SINGLE |
| Application-Lan: | Ethernet(PoE) |
| Latch: | Down |
| PIN Type: | THT Solder |
| Temperature: | 0 TO + 70 |
| Package Height (mm): | 13.45 |
| Package Length (mm): | 25.25 |
| Package Width (mm): | 16.15 |
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio: 1CT:1CT %%P3%P (P1-P2:J1-J2)
(P3-P6:J3-J6)
2.OCL(100KHz,0.1Vrms,8mA):
(P1-P2,P3-P6) 350uH Min
3.DCR:
(P1-P2,P3-P6) 0.9 OHMS Max
4.Insertion Loss:
0.1-100MHz: -1.1dB Max
5.Return Loss:
0.5-30MHz: -18dB Min
40MHz: -15.5dB Min
50MHz: -13.6dB Min
60-80MHz: -12dB Min
6.Cross talk:
1-100MHz: -38dB Typ
7.Common Mode Rejection:
0.1-30MHz: -50dB Typ
30-60MHz: -40dB Typ
60-100MHz: -30dB Typ
8.Isolation: 1500Vrms
