Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPJ47018CNLE
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec No: |
PS-8RJ45-MJPOE1 |
Ports: |
LPJ47018CNL |
Rows: |
2 |
Applications: |
10/100 Base-TX POE/POE+ |
Mounting: |
PCB THT |
Shielding: |
Shielded, EMI Finger |
Files: |
PDF / 3D ,STEP IGS Datasheet |
Spec No: |
PS-8RJ45-MJPOE1 |
Ports: |
LPJ47018CNL |
Rows: |
2 |
Applications: |
10/100 Base-TX POE/POE+ |
Mounting: |
PCB THT |
Shielding: |
Shielded, EMI Finger |
Files: |
PDF / 3D ,STEP IGS Datasheet |
|
Characteristics
|

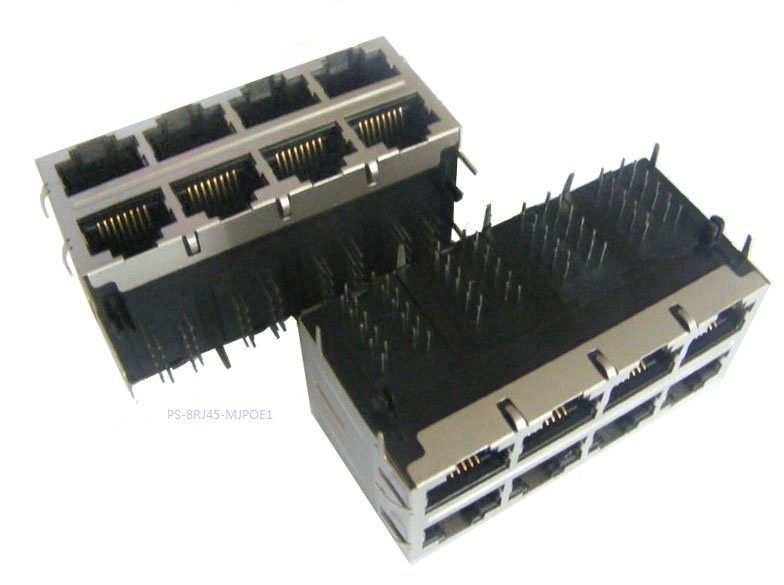

PS-8RJ45-MJPOE1 Stacked RJ45 2x2 Jack For Industrial Network Switch LPJ47018CNL
|
|
2)SMD,THT and THT with USB
|
|
|
3)350μH min,OCL with 8mA bias
|
|
|
4)Complies with IEEE 802.3
|
|
|
5)Extended temperature range 0°c~70°c ( or -40°c~+85°c )
available
|
|
|
6)PoE/PoE+ (350mA~720mA)
|
|
|
Operation/Application
|
×DSL Modems
|
|
EMbedded PC
|
|
|
LAN Applications
|
|
|
Hub,Router,Switches
|
|
|
AVR,DVR
|
|
|
Electrical Characteristics
|
|
|
Shielded
|
with/without
|
|
Termination Features
|
|
|
EMI Finger
|
with/without
|
|
Termination Method
|
Solder
|
|
Body Features
|
|
|
LED
|
with/without
|
|
EMI Fingers - Top and Sides
|
with/without
|
|
Latch Orientation
|
Tape UP/Down
|
|
PCB Tail Length
|
3.5±0.5mm
|
|
Height Above Board
|
Optional
|
|
Contact Features
|
|
|
Preloaded
|
YES
|
|
Contact Termination Type
|
Through Hole
|
|
Connector Style
|
Jack
|
|
Cores Number
|
8
|
|
Industry Standards
|
|
|
Lead Free Solder Process
|
Wave solder capable to 265°c
|
|
RoHS/elv Compliance History
|
Always was RoHS Compliant
|
|
Conditions for Usage
|
|
|
Applies To
|
Printed Circuit Board
|
|
Environmental Conditions
|
Office / Premises
|
|
Operating Temperature(°c)
|
0°c~70°c / -40°c~+85°c
|
|
Other Features
|
|
|
Magnetic Circuit
|
3D15
|
|
Status Indicator
|
LED
|
|
Left LED Color
|
Optional
|
|
Right LED Color
|
Optional
|
|
Decoupling capacitor
|
with/without
|
|
Rear PCB Ground Tab
|
with/without
|
|
Singal Lead Quantity
|
8
|
|
Datasheets
|
E-mail Inquiry to Summer@link-PP.com
|
|
LINK-PP Factory Original PN
|
LPJ47018CNLE
|
