Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: RM4-10PADV1F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Quick Details
Specially for Point to Point Wireless Ethernet Bridge
Single port, Multi-port and Stackable configurations (Thru-hole)
Reduces the number of components to be placed on the board
Frees up board space and offers signal protection
Noise reduction in the Ethernet network analyzer system
Improved reliability and optimal system performance
Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
Helps manufacturers reach their goals of cost reduction
Specifications
|
Characteristics
|

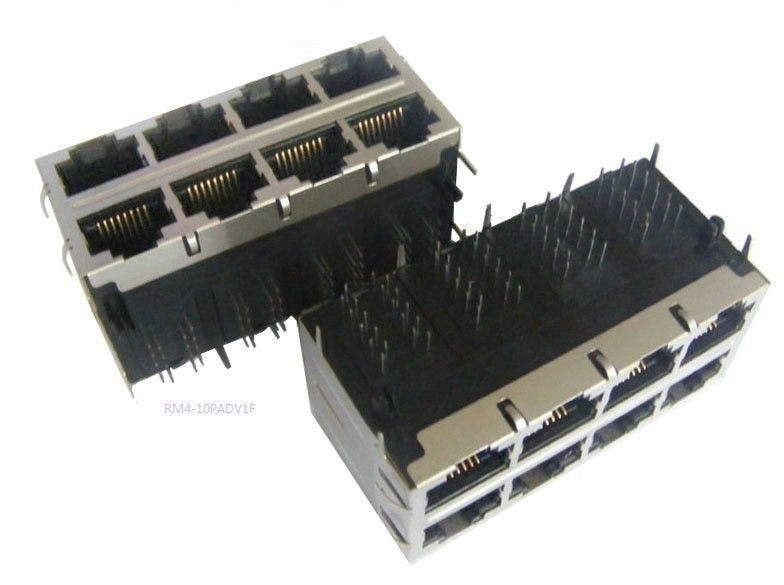

RM4-10PADV1F UDE Stacked 2x2 RJ45 Jack For Ethernet Switches LPJ47408CNL |
| 2)SMD,THT and THT with USB | |
| 3)350μH min,OCL with 8mA bias | |
| 4)Complies with IEEE 802.3 | |
|
5)Extended temperature range 0°c~70°c ( or -40°c~+85°c ) available |
|
| 6)PoE/PoE+ (350mA~720mA) | |
| Operation/Application | ×DSL Modems |
| EMbedded PC | |
| LAN Applications | |
| Hub,Router,Switches | |
| AVR,DVR | |
| Electrical Characteristics | |
| Shielded | with/without |
| Termination Features | |
| EMI Finger | with/without |
| Termination Method |
Solder |
| Body Features | |
| LED | with/without |
| EMI Fingers - Top and Sides | with/without |
| Latch Orientation | Tape UP/Down |
| PCB Tail Length | 3.5±0.5mm |
|
Height Above Board |
Optional |
| Contact Features | |
| Preloaded | YES |
| Contact Termination Type | Through Hole |
| Connector Style | Jack |
|
Cores Number |
8 |
| Industry Standards | |
| Lead Free Solder Process | Wave solder capable to 265°c |
| RoHS/elv Compliance History | Always was RoHS Compliant |
| Conditions for Usage | |
| Applies To | Printed Circuit Board |
| Environmental Conditions | Office / Premises |
| Operating Temperature(°c) | 0°c~70°c / -40°c~+85°c |
| Other Features | |
| Magnetic Circuit | 3D15 |
| Status Indicator | LED |
| Left LED Color | Optional |
| Right LED Color | Optional |
| Decoupling capacitor | with/without |
| Rear PCB Ground Tab | with/without |
| Singal Lead Quantity | 8 |
|
Datasheets |
E-mail Inquiry to Summer@link-PP.com |
| LINK-PP Factory Original PN | LPJ47408CNL |
LINK-PP RJ45 Designed for BeagleBone Black of Texas Instrument
http://www.ti.com/tool/beaglebk#0
a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.
LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti
|
We Can Also Make These Part Number Below
|
|||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| RM4-10PADV1F UDE Stacked 2x2 RJ45 Jack For Ethernet Switches LPJ47408CNL | |
| Type PCB Mount | Thru-Hole (THT) |
| Number of Ports | 1, 2, and 4 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8 |
| Shield and Unshield | Available in Shield and Unshield |
| Connector Type | RJ45 |
| PoE | Power Over Ethernet Integrated Or Without |
| Magnetics | Magnetic Integrated |
| Magnetics Speed | Magnetics 10/100Mbps Or 1000Mbps |
| Packaging | Tray Options |
| Tab Location | Tab Up and Tab Down Options |
| LED Color | Optional |
| Number of Positions | 8 and 10 Positions or Others |
| Number of Contacts | 8 and 10 Contacts or Others |
| RoHS Compliant | Yes |
| Solder Temperature | 230 TO 240 degr.C 5-10 SECONDS |
| Solder High-Temp Option | 260 degr.C 5-10 SECONDS |
| High Temperature Option | -40 to +85 Degrees F |
| Operating Temperature | -0 to 70 Degrees C |
