Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJK2065AONL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Spec: |
0826-1X1T-M1-F |
Alternate: |
LPJK2065AONL |
Ethernet: |
1x 10/100/1000Base-T POE |
Indicator: |
O&G / Y |
Mounting: |
THT Above PCB |
Cross Rf: |
LPJK2065AONL = 0826-1X1T-M1-F |
Files: |
3D Step IGS PDF Datasheet |
Spec: |
0826-1X1T-M1-F |
Alternate: |
LPJK2065AONL |
Ethernet: |
1x 10/100/1000Base-T POE |
Indicator: |
O&G / Y |
Mounting: |
THT Above PCB |
Cross Rf: |
LPJK2065AONL = 0826-1X1T-M1-F |
Files: |
3D Step IGS PDF Datasheet |

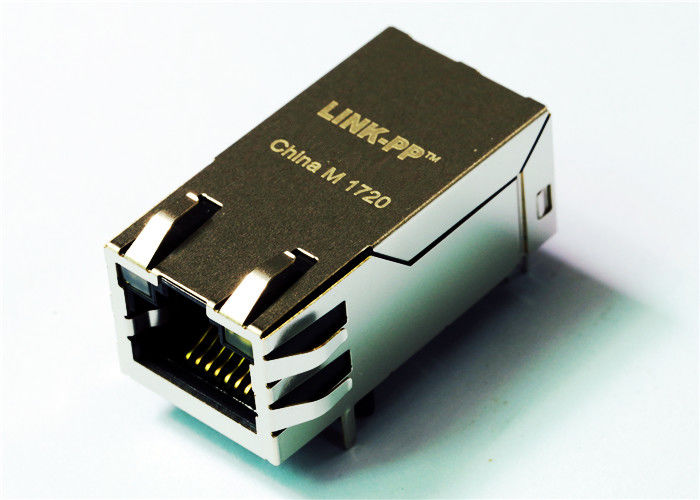

Characteristics | 0826-1X1T-M1-F CONN MAGJACK 1PORT 1000 BASE-T AutoMDIX, Power over Ethernet,PoE |
2)SMT,THT and THT with USB | |
3)350μH min,OCL with 8mA bias | |
4)Complies with IEEE 802.3af/at | |
5)Extended temperature range 0°c~70°c ( or -40°c~+85°c ) available | |
6)PoE/PoE+ (350mA~720mA) | |
Operation/Application | ×DSL Modems |
EMbedded PC | |
LAN Applications | |
Hub,Router,Switches | |
AVR,DVR | |
Electrical Characteristics | |
Shielded | with/without |
Termination Features | |
EMI Finger | with/without |
Termination Method | Solder |
Body Features | |
LED | with/without |
EMI Fingers - Top and Sides | with/without |
Latch Orientation | Tape UP/Down |
PCB Tail Length | 3.5±0.5mm |
Height Above Board | Optional |
Contact Features | |
Preloaded | YES |
Contact Termination Type | Through Hole |
Connector Style | Jack |
Cores Number | 8 |
Industry Standards | |
Lead Free Solder Process | Wave solder capable to 265°c |
RoHS/elv Compliance History | Always was RoHS Compliant |
Conditions for Usage | |
Applies To | Printed Circuit Board |
Environmental Conditions | Office / Premises |
Operating Temperature(°c) | 0°c~70°c / -40°c~+85°c |
Other Features | |
Magnetic Circuit | 3D15 |
Status Indicator | LED |
Left LED Color | Optional |
Right LED Color | Optional |
Decoupling capacitor | with/without |
Rear PCB Ground Tab | with/without |
Singal Lead Quantity | 8 |
Others Name | LPJK2065AONL |
