Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 101210F90SPM400ZA
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part No: |
101210F90SPM400ZA |
Standard: |
101210F90SPM400ZA |
Datasheet: |
LPJ17409A8NL |
Cross: |
LPJ17409A8NL |
Contacting: |
Gold |
Dimension: |
28.49x17.20x3.56mm |
Part No: |
101210F90SPM400ZA |
Standard: |
101210F90SPM400ZA |
Datasheet: |
LPJ17409A8NL |
Cross: |
LPJ17409A8NL |
Contacting: |
Gold |
Dimension: |
28.49x17.20x3.56mm |

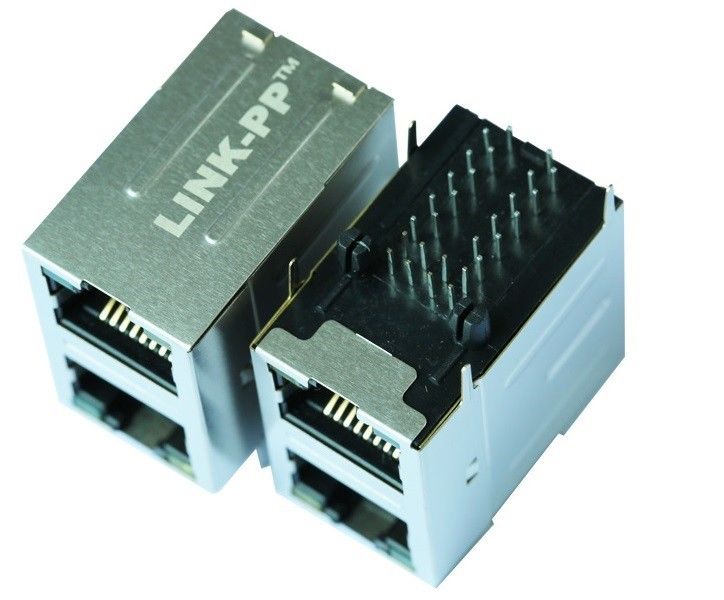

LPJ17409A8NL Cross 101210F90SPM400ZA Stacked RJ45 2 x 1 Port Connector
|
Characteristics
|
101210F90SPM400ZA Stacked RJ45 LPJ17409A8NL To Ethernet Switches
|
|
2)SMT,THT and THT with USB
|
|
|
3)350μH min,OCL with 8mA bias
|
|
|
4)Complies with IEEE 802.3
|
|
|
5)Extended temperature range 0°c~70°c ( or -40°c~+85°c )
available
|
|
|
6)PoE/PoE+ (350mA~720mA)
|
|
|
Operation/Application
|
×DSL Modems
|
|
EMbedded PC
|
|
|
LAN Applications
|
|
|
Hub,Router,Switches
|
|
|
AVR,DVR
|
|
|
Electrical Characteristics
|
|
|
Shielded
|
with/without
|
|
Termination Features
|
|
|
EMI Finger
|
with/without
|
|
Termination Method
|
Solder
|
|
Body Features
|
|
|
LED
|
with/without
|
|
EMI Fingers - Top and Sides
|
with/without
|
|
Latch Orientation
|
Tape UP/Down
|
|
PCB Tail Length
|
3.5±0.5mm
|
|
Height Above Board
|
Optional
|
|
Contact Features
|
|
|
Preloaded
|
YES
|
|
Contact Termination Type
|
Through Hole
|
|
Connector Style
|
Jack
|
|
Cores Number
|
8
|
|
Industry Standards
|
|
|
Lead Free Solder Process
|
Wave solder capable to 265°c
|
|
RoHS/elv Compliance History
|
Always was RoHS Compliant
|
|
Conditions for Usage
|
|
|
Applies To
|
Printed Circuit Board
|
|
Environmental Conditions
|
Office / Premises
|
|
Operating Temperature(°c)
|
0°c~70°c / -40°c~+85°c
|
|
Other Features
|
|
|
Magnetic Circuit
|
3D15
|
|
Status Indicator
|
LED
|
|
Left LED Color
|
Optional
|
|
Right LED Color
|
Optional
|
|
Decoupling capacitor
|
with/without
|
|
Rear PCB Ground Tab
|
with/without
|
|
Singal Lead Quantity
|
8
|
|
Datasheets
|
E-mail Inquiry to Summer@link-PP.com
|
|
Others Name
|
LPJ17409A8NL
|
|
101210F90SPM400ZA Stacked RJ45 LPJ17409A8NL To Ethernet Switches
|
|
|
Type PCB Mount
|
Thru-Hole (THT)
|
|
Number of Ports
|
1, 2, and 4 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8
|
|
Shield and Unshield
|
Available in Shield and Unshield
|
|
Connector Type
|
RJ45
|
|
PoE
|
Power Over Ethernet Integrated Or Without
|
|
Magnetics
|
Magnetic Integrated
|
|
Magnetics Speed
|
Magnetics 10/100Mbps Or 1000Mbps
|
|
Packaging
|
Tray Options
|
|
Tab Location
|
Tab Up and Tab Down Options
|
|
LED Color
|
Optional
|
|
Number of Positions
|
8 and 10 Positions or Others
|
|
Number of Contacts
|
8 and 10 Contacts or Others
|
|
RoHS Compliant
|
Yes
|
|
Solder Temperature
|
230 TO 240 degr.C 5-10 SECONDS
|
|
Solder High-Temp Option
|
260 degr.C 5-10 SECONDS
|
|
High Temperature Option
|
-40 to +85 Degrees F
|
|
Operating Temperature
|
-0 to 70 Degrees C
|
