Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: RoHS,Reach,SGS, UL,ISO9001
Model Number: LPJ0009GDNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50PCS/Tray,1200PCS/Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specification: |
11A053-5722-00 |
Part No: |
LPJ0009GDNL |
Ethernet: |
10/100 Base-T |
LEDs: |
Yellow / Green |
Apllication: |
Power Over Ethernet |
Samples: |
Available |
Specification: |
11A053-5722-00 |
Part No: |
LPJ0009GDNL |
Ethernet: |
10/100 Base-T |
LEDs: |
Yellow / Green |
Apllication: |
Power Over Ethernet |
Samples: |
Available |

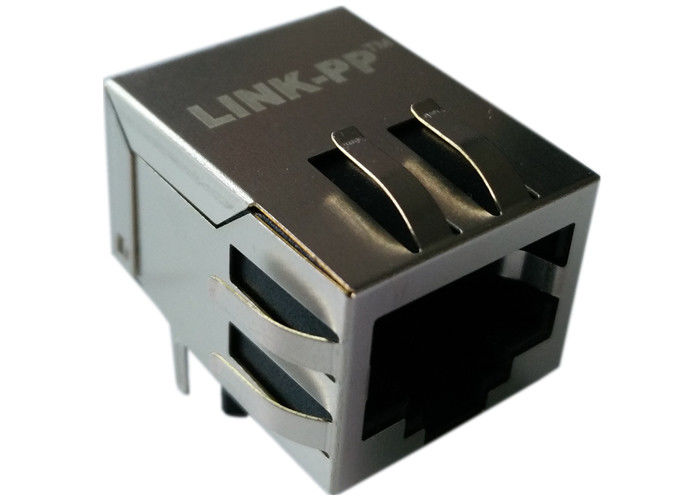

| Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Yellow/Green LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJ0009GDNL |
| Other Part Number | 11A053-5722-00 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | YELLOW/GREEN |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.528 |
| Package Height (mm) | 13.40 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 0.626 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio: 1CT:1CT
2.OCL(100KHz,0.1Vrms,8mA):350uH Min
3.Insertion Loss:
0.1-100MHz: -1.1dB Max
4.Return Loss:
0.5-30MHz: -18dB Min
40MHz: -15.5dB Min
50MHz: -13.6dB Min
60-80MHz: -12dB Min
5.Cross talk:
0.1-100MHz: -40dB Typ
6.Common Mode Rejection:
0.1-30MHz: -50dB Typ
30-60MHz: -40dB Typ
60-100MHz: -35dB Typ
7.Isolation: 1500Vrms
8.Operating Temperature: 0℃ TO 70℃.
General Requirements
1 Qualification:
Connectors furnished under this specification shall be capable of meeting the qualification test
requirements specified herein.
2 Material:
2.1 Plastic Housings: UL94V-0
2.2 Contacts: Copper Alloy
2.3 Shield: Copper Alloy
3 Finish:
3.1 Contacts: Gold Selectively Plated
3.2 Contacts: Nickel Plated All Over
3.3 Reference Customer Drawing for Contact Solder Tails
3.4 Shield: Tin or Nickel Plated All Over
4 Design and Construction:
Connectors shall be of the design, construction and physical dimensions as specified on the
applicable product drawing and TIA 1096. In case of conflict between this specification and
product drawings, the drawings shall take precedence. 50 minch (1.27 mm) gold plated
connectors compliant with TIA 1096 specifications.
5 Examination of Product:
Connectors shall meet all specified dimensions of product drawings and internal workmanship
standards. There shall be no evidence of cracking, chipping, contamination or loose parts when
inspected, without magnification, to the unaided eye.
6 Ratings:
6.1 Current: 1.5 amperes maximum at 25°C
6.2 Voltage: 150 VAC maximum
7 Minimum Number of Mating/Unmating Operations:
7.1 Performance Level 1: 750 Cycles
7.2 Performance Level 2: 2500 Cycles
8 Minimum Number of Cable Re-Terminations:
8.1 Refer to application drawings
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
Applications For Terminal User
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time
EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
