1840417-4 Vertical Type RJ45 With Step LPJD0711B4NL Industrial Router Program

China 1840417-4 Vertical Type RJ45 With Step LPJD0711B4NL Industrial Router Program supplier
1840417-4 Vertical Type RJ45 With Step LPJD0711B4NL Industrial Router Program supplier 1840417-4 Vertical Type RJ45 With Step LPJD0711B4NL Industrial Router Program supplier

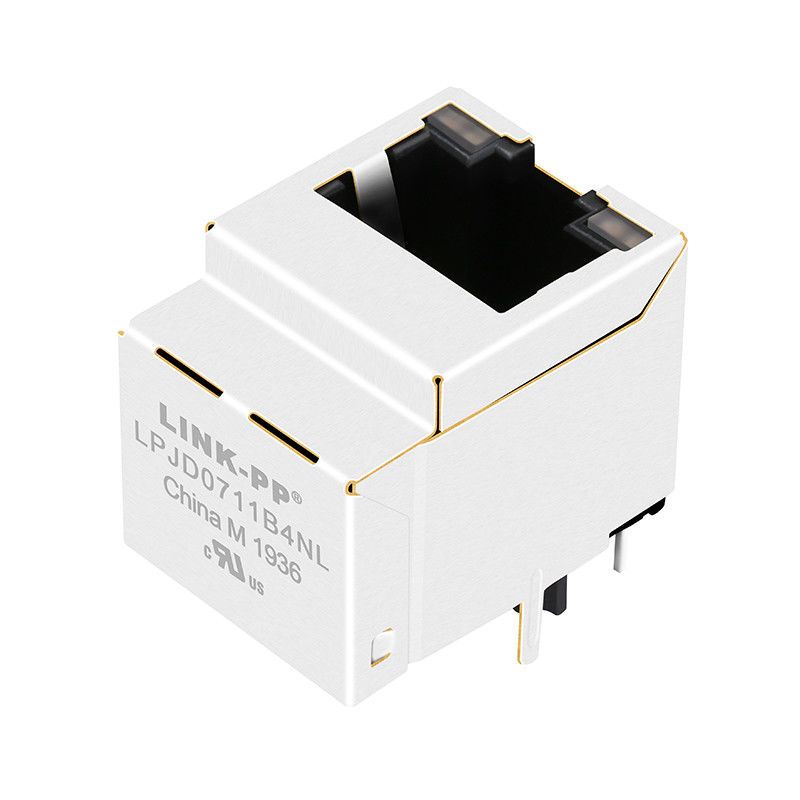

Large Image :  1840417-4 Vertical Type RJ45 With Step LPJD0711B4NL Industrial Router Program

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 1840417-4

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: 0.5~10 USD/PCS
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: 3-30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: 1840417-4 Specification: 1840417-4
Cross&Datasheet: LPJD0711B4NL Apllication: 10/100/1000 M Vertical Rj45
LEDs: Green&Yellow/Green&Yellow Standards: IEEE 802.3

1840417-4 Vertical Type RJ45 With Step LPJD0711B4NL Industrial Router Program



Competitor Cross Reference



Vertical RJ 45 Connector with 10/100/1000 Base-T Integrated Magnetics ,Green&Yellow/Green&Yellow LED,RoHS
LINK-PP Part Number LPJD0711B4NL
Belfuse Part Number 1840417-4
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green&Yellow/Green&Yellow
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle Vertical
PCB Retaining Post T POST
Package Height (Inches) 0.260
Package Height (mm) 16.60
Package Length (Inches) 0.850
Package Length (mm) 21.59
Package Width (Inches) 0.630
Package Width (mm) 16.00
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100/1000 BASE-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
