Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 51F-1201GYD2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
51F-1201GYD2 |
Specification: |
51F-1201GYD2 |
Cross&Datasheet: |
LPJD0115BENL |
Apllication: |
Fieldbus Gateways |
Original Munafactuer: |
LINK-PP |
Project Application: |
Single Board Computers |
Part Number: |
51F-1201GYD2 |
Specification: |
51F-1201GYD2 |
Cross&Datasheet: |
LPJD0115BENL |
Apllication: |
Fieldbus Gateways |
Original Munafactuer: |
LINK-PP |
Project Application: |
Single Board Computers |

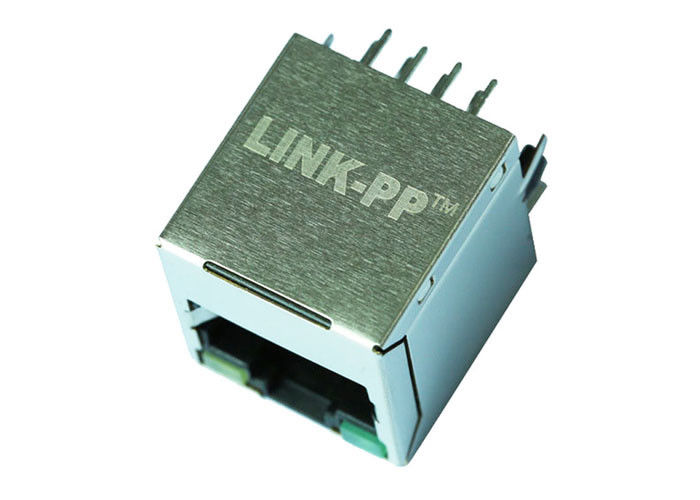

| Vertical RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,RoHS | |
| LINK-PP Part Number | LPJD0115BENL |
| YDS Part Number | 51F-1201GYD2 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.665 |
| Package Height (mm) | 16.90 |
| Package Length (Inches) | 0.630 |
| Package Length (mm) | 16.00 |
| Package Width (Inches) | 0.657 |
| Package Width (mm) | 16.70 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Specifications
51F-1201GYD2 =>LPJD0115BENL
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
Q: What is the Minimum Order Quantity(MOQ)?
A: Normally, MOQ is 1000pcs, but special requirements can be accepted.
Q: How much do I need to pay for your OEM service?
A: No need to pay extra cost for our OEM service if order quantity over 1000 pcs. The OEM cost includes in the unit price.
Q: What is the lead time?(How long do you need me to prepare my goods?)
A: 2-4 days for sample orders, 10-15 days for mass production orders (based on different quantities, OEM , etc.)
Q: How will you deliver goods to me?
A: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.
Q: How long do I need to wait before my goods arrive?
A: 5-7 days for air transportation, 3-5 days for international express.
Q: How is your product quality?
A: Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. DOSIN always care what you care!
Q: What is your warranty?
A: Our warranty is 12 months after delivery, DOSIN pays high attention to after-sales service.
