Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

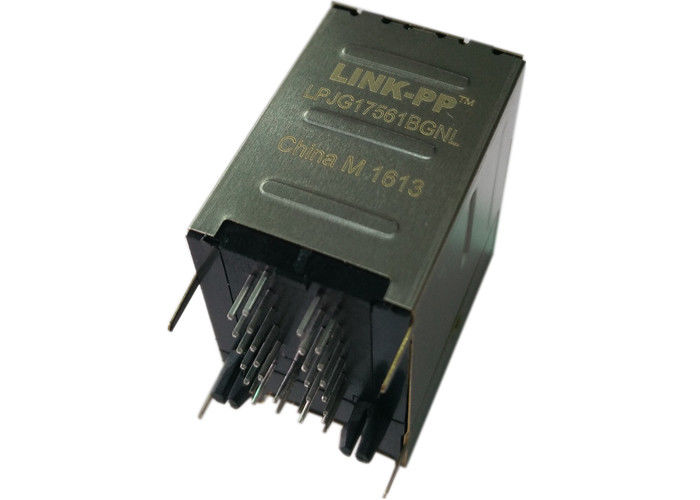

Model Number: LPJG17561BGNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part Number: |
LPJG17561BGNL |
Cross Itm: |
AR0508-6232 |
Port: |
2x1 Stacked |
Life Time: |
Endless |
Ethernet: |
2x 10/100/1000Vase-T |
Samples: |
Available |
Part Number: |
LPJG17561BGNL |
Cross Itm: |
AR0508-6232 |
Port: |
2x1 Stacked |
Life Time: |
Endless |
Ethernet: |
2x 10/100/1000Vase-T |
Samples: |
Available |
|
Specifications |
Part Number |
Manufacturer |
Description |
|
ALLIED AR0508-6232 |
LPJG17561BGNL |
LINK-PP |
2x1 1000M Rj45 With LEDs |
|
Series |
Connector Type |
Applications |
Mounting Type |
|
Connectors, Interconnects |
LINK-PP Rj45 |
1000Mbps |
Thru-Hole |
| Orientation | Termination | LED Color | Shielding |
| 90° Angle (Right) | Solder | Green/Yellow | Shielded ,EMI-Finger |
|
1000 Base-T Ethernet Application
Meets IEEE 802.3 & ANSI X 3.263 standards Impedance: 100OHMS Transmit open circuit inductance (OCL): 350uH (MIN) @100KHz,0.1VRMS with 8mA DC Bias Always EU RoHS/ELV Compliant, wave solder capable to 265°C RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F Standard operating temp: 0ºC to +70ºC (see footnote) Industrial operating temp: -40ºC to +85ºC (see footnote) Electrical Specifications @25℃
1.Turns Ratio: PRI:SEC = 1CT:1CT %%P2%P2.OCL: 350uH MIN @ 100KHz,100mV,8mADC 3.Insertion Loss: 1～100MHz:-1.0dB MAX 4.Return Loss(dB MIN): 1～30MHz:-18 30～60MHz:-14 60～80MHz:-12 5.Crosstalk(dB TYP): 1～30MHz:-40 30～60MHz:-35 60～80MHz:-30 6.Differential to Common Mode Rejection: 1～50MHz: -30dB TYP 50～150MHz: -20dB TYP 7.CMRR: 1～100MHz:-30dB MIN 8.Isolation: 1500Vrms MIN 9.Operating Temperature Range: -40～+85℃. |
|||
|
Related Part |
|||
| AR0508-6232 | LPJG17561BGNL | AR11-3786I | LPJG17561BGNL |
| AR11-3693 | AR14-3828 | AR0508-6232 | ARV11-3666 |
| AR11-3695 | AR14-4164IR | AR11-3836 | AR0508-6232 |
| AR11-3695I | AR14-3756I | AR11-4026I | ARV11-3824I |
| LPJG17304AGNL | LPJG170378A4NL | LPJG17332A8NL | LPJG17313A31NL |
| LPJG17304AHNL | LPJG17037A4NL | LPJG17332AWNL | LPJG17320A0NL |
| LPJG17304AWNL | LPJG17039A61NL | LPJG17333ASNL | LPJG17324CNL |
| LPJG17102NL | LPJG17364A8NL | LPJG17303AGNL | AR11-3701 |
| AR11-3686I | AR14-3638I | AR11-4027I | AR11-3960I |
| AR11-3718 | AR14-3639 | LPJG17561BGNL | AR11NS-3805 |
| AR11-3930I | LPJG17561BGNL | AR11-3980I | AR0508-6232 |
| AR11-3719 | AR14-3916 | AR11-3949 | AR1009-1326 |
| AR0508-6232 | AR14-3681 | AR11-3690 | ARA009-3252I |
| LPJ17633ADNL | LPJ17633AENL | LPJ17633AFNL | LPJ17633BDNL |
| AR11-3837 | AR14-3759I | AR0508-6232 | ARSM11-3653I |
| AR11-3716 | AR14-3761IR | AR11-4161I | ARSM11-3687I |
| AR11-3717 | AR0508-6232 | ARA502-1122S | ARSM11-3878I |
| LPJG17305AGNL | LPJG17091A4NL | LPJG17346DNL | LPJG17329BGNL |
| LPJG17311A8NL | LPJG17091AENL | LPJG17348AHNL | LPJG17103ADNL |
Housing: PBT, Flammability Rating 94V-O.
Shell: C2680 Brass, 0.20mm thick, 50u" nickel plating.
Mod Jack Contacts: Phosphor Bronze, 0.35mm thick, 6u" Gold plated.
LED: Diffused Epoxy Lens, 0.5x0.5mm Carbon Steel wireframe leads.
