Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 5-6605817-2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Specifications: |
5-6605817-2 |
P/N: |
LPJ16205A42NL |
Mechanical: |
21.25x15.90x13.30mm |
Ethernet: |
1x 10/100Base |
Indicators: |
LEDs |
Samples: |
Free |
Specifications: |
5-6605817-2 |
P/N: |
LPJ16205A42NL |
Mechanical: |
21.25x15.90x13.30mm |
Ethernet: |
1x 10/100Base |
Indicators: |
LEDs |
Samples: |
Free |
|
Part Number
|
P/N
|
Manufacturer
|
Description
|
|
5-6605817-2
|
LPJ16205A42NL
|
LINK-PP
|
1x 10/100Base Rj45,Up
|
|
Series
|
Connector Type
|
Applications
|
Mounting Type
|
|
Connectors, Interconnects
|
LINK-PP Rj45
|
10/100 Mbps
|
Thru-Hole
|
|

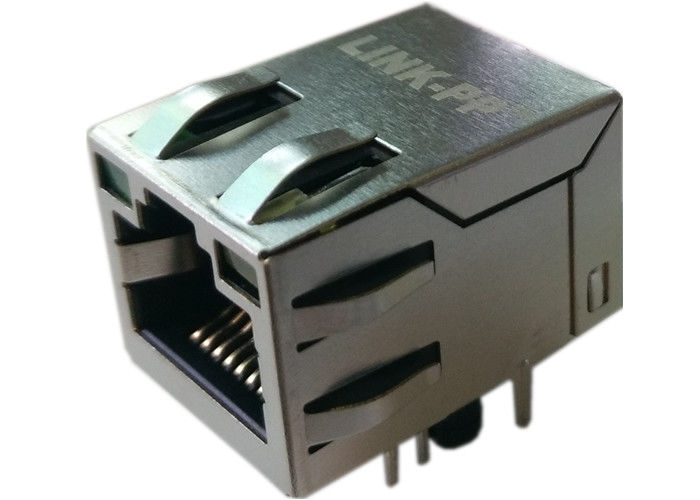

5-6605817-2 | LPJ16205A42NL Magnetic RJ45 Single Port , Resistor Leds
|
|||
|
Orientation
|
Termination
|
LED Color
|
Shielding
|
|
180° Angle (Vertical)
|
Solder
|
G/Y
|
Shielded ,EMI-Finger
|
| Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
