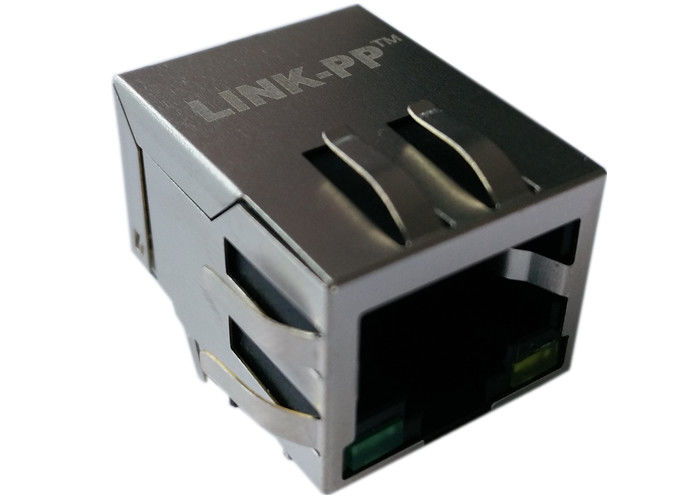

13F-60LDNL Single Port Rj-45 Jack 10 / 100 Base-T Magnetics LPJ0017GENL

Name: 13F-60LDNL Single Port Rj-45 Jack 10 / 100 Base-T Magnetics LPJ0017GENL
Brand: LINK-PP
SKU: 13F-60LDNL
Price: 0.09 USD
Availability: InStock
Rating: 5 (143 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 13F-60LDNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 smd connector, shielded rj45 plugs


Specifications:	13F-60LDNL	P/N:	LPJ0017GENL
Mounting:	R/A Side Entry	Apllication:	10/100
Original Munafactuer:	LINK-PP	Samples:	Free

Specifications:	13F-60LDNL
P/N:	LPJ0017GENL
Mounting:	R/A Side Entry
Apllication:	10/100
Original Munafactuer:	LINK-PP
Samples:	Free

13F-60LDNL Single Port Rj-45 Jack 10 / 100 Base-T Magnetics LPJ0017GENL

13F-60LDNL Single Port Rj-45 Jack 10 / 100 Base-T Magnetics LPJ0017GENL

Part Number

P/N

Manufacturer

Description

13F-60LDNL

LPJ0017GENL

LINK-PP

13F-60LDNL 1x10/100M

Series

Connector Type

Applications

Mounting Type

Connectors, Interconnects

LINK-PP Female Rj45

10/100M

Thru-Hole(Optional)

Orientation

Termination

LED Color

Shielding

90° Angle (Right)

Solder

Optional

(Un)Shielded,EMI-Finger

RJ-45 needs to be matched FCC standard.
Complies with requirement of IEEE802.3u standards.
RJ-45 connector integrated with transformer/impedance
resistor/high voltage capacitor.
Size same as RJ-45 connector to save PCB board space.
Reduced EMI radiation to improve EMI performance.
Design for 10/100 BASE transmission over UTP-5 cable.
LEDS are isolated to reduce cross talk and electro-magnetics
interference.
Compliance with ROHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -40℃ to +85℃.
Designed to support applications, such as SOHO (ADSL modems), LAN-on-Mother-
board (LOM), Hub and Switches
