Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 7499011211= MIC25113-0141T-LF3
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Part Number: |
7499011211= MIC25113-0141T-LF3 |
Mass Production: |
LPJ1016AHNL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100Base-T |
Termination: |
Solder |
LEDs: |
Optional |
Part Number: |
7499011211= MIC25113-0141T-LF3 |
Mass Production: |
LPJ1016AHNL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100Base-T |
Termination: |
Solder |
LEDs: |
Optional |
Quick Details
1.10/100 Base-T Applications
2.1X1 Single Port Jack
3. 7499011211= MIC25113-0141T-LF3【Designing Model】
4. LPJ1016AHNL【Mass Production Model】
4. LED optional, EMI-finger Optional.
Description

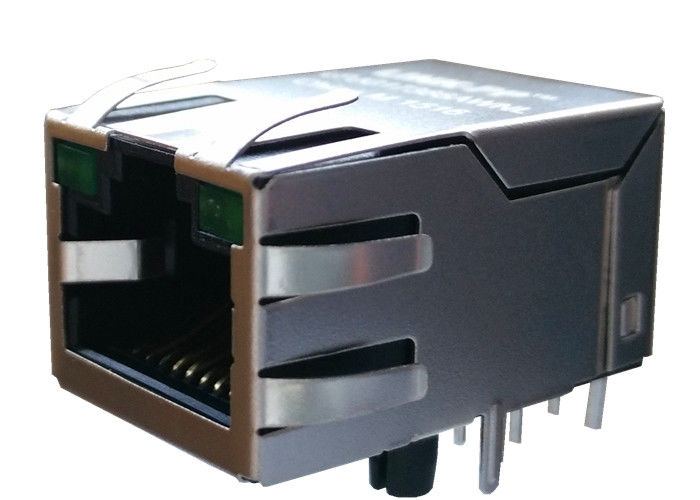

1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3af/at
| LINK-PP Part Number | LPJ1016AHNL |
| Designing Model | 7499011211= MIC25113-0141T-LF3 |
| Cores per Port | 4 |
| LED Option | GREEN/YELLOW |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 13.45 |
| Package Length (mm) | 25.25 |
| Package Width (mm) | 16.15 |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
|
|
Applications For Terminal User
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale.......
EMS Application
Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
