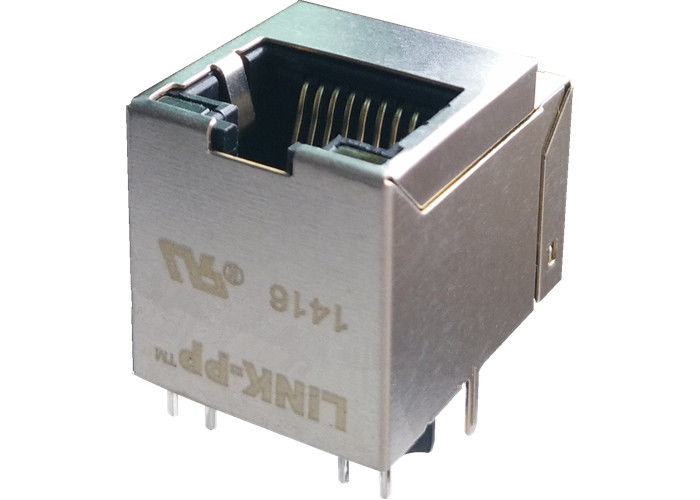

TJLC-001TA1 Rj45 Vertical Connector LPJD5013BGNL 10/100Mbps 180 Degree
TJLC-001TA1 Rj45 Vertical Connector LPJD5013BGNL 10/100Mbps 180 Degree

TJLC-001TA1 Rj45 Vertical Connector LPJD5013BGNL 10/100Mbps 180 Degree

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: TJLC-001TA1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 54PCS/Tray,24Trays=37*30*30CM=1296PCS=10KG/Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description
Highlight:

modular jacks rj45

,

multi port connector

Specification:
TJLC-001TA1
Part No:
LPJD5013BGNL
Original Munafactuer:
LINK-PP
Application:
10/100 Base-T
Termination:
Solder
LEDs:
Optional
Samples:
Available
Type:
DIP / Top Entry
Specification:
TJLC-001TA1
Part No:
LPJD5013BGNL
Original Munafactuer:
LINK-PP
Application:
10/100 Base-T
Termination:
Solder
LEDs:
Optional
Samples:
Available
Type:
DIP / Top Entry
TJLC-001TA1 Rj45 Vertical Connector LPJD5013BGNL 10/100Mbps 180 Degree

TJLC-001TA1 Rj45 Vertical Connector LPJD5013BGNL 10/100Mbps 180 Degree


  1. Vertical Rj45 Socket 1x1 LINK-PP LPJD5013BGNL
  2. Cross TJLC-001TA1
  3. 10/100 Base-T Rj45 With Integrated Magnetics and Leds
  4. Contact Area : Gold Flash

Electrical Specifications @25℃
1.Impedance: 100 ohms
2.OCL: 350uH Min
@100KHz,0.1V,8mADC BIAS
3.Turns Ratio:
TX = 1CT∶1CT RX = 1CT∶1CT
4.Insertion Loss:
1-100MHz:-1.0dB Max
5.Return Loss(dB Min):
1-30MHz:-18 40MHz:-14
50MHz:-12 60-80MHz:-10
6.Crosstalk(dB Min):
20MHz:-47 40MHz:-40
60MHz:-37 80MHz:-35
100MHz:-33
7.Differential to Common Mode Rejection:
1-100MHz:-33dB Min
8.Common Mode Rejection Ratio:
1-100MHz:-30dB Min
9.Isolation Voltage: 1500Vrms
10.Operating Temperature: -40℃～+85℃

TJLC-001TA1 Rj45 Vertical Connector LPJD5013BGNL 10/100Mbps 180 Degree 0

TJLC-001TA1 Rj45 Vertical Connector LPJD5013BGNL 10/100Mbps 180 Degree 1
