MJ-11U2GYA5-G110 RJ45 Modular Jack 10Pin Shielded with Leds Rugged Tablet PC

Name: MJ-11U2GYA5-G110 RJ45 Modular Jack 10Pin Shielded with Leds Rugged Tablet PC
Brand: LINK-PP
SKU: MJ-11U2GYA5-G110
Price: 0.05 USD
Availability: InStock
Rating: 5 (149 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: MJ-11U2GYA5-G110

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj-45 ethernet jack, modular jacks rj45


Specifications:	MJ-11U2GYA5-G110	P/N:	LPJG16388AENL
Mechanicals:	21.25x15.90x13.40mm	Termination:	Solder
LEDs:	Optional	Samples:	Available

Specifications:	MJ-11U2GYA5-G110
P/N:	LPJG16388AENL
Mechanicals:	21.25x15.90x13.40mm
Termination:	Solder
LEDs:	Optional
Samples:	Available

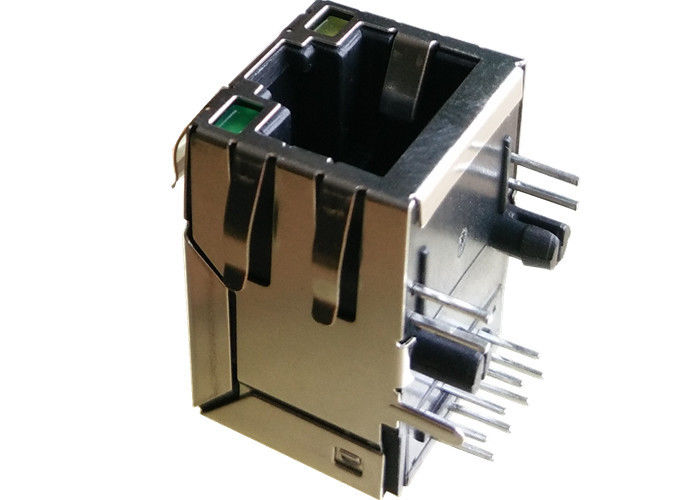

MJ-11U2GYA5-G110 RJ45 Modular Jack 10Pin Shielded with Leds Rugged Tablet PC

MJ-11U2GYA5-G110 RJ45 Modular Jack 10Pin Shielded with Leds Rugged Tablet PC

RJ45 1X1 RJ45 Female Jack Tab-up
Through Hole MJ-11U2GYA5-G110
10/100/1000 Base-T
Contact Area : Gold Flash

Description

1X1-Rj45 Gigabyte with/without leds, meeting IEEE 802.3ab

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
