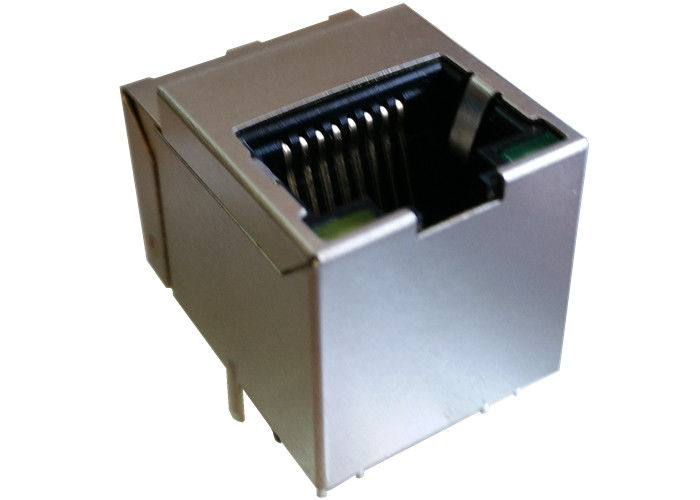

HFJV1-E2450-L21RL Rj45 Vertical With Magnetics 1x1 10/100BASE-T LPJD5011BENL

Name: HFJV1-E2450-L21RL Rj45 Vertical With Magnetics 1x1 10/100BASE-T LPJD5011BENL
Brand: LINK-PP
SKU: HFJV1-E2450-L21RL
Price: 0.09 USD
Availability: InStock
Rating: 4.6 (117 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HFJV1-E2450-L21RL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 54PCS/Tray,24Trays=37*30*30CM=1296PCS=10KG/Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                stacked rj45 connectors, modular jacks rj45


Part Number:	HFJV1-E2450-L21RL	Mass Production:	LPJD5011BENL
Original Munafactuer:	LINK-PP	Application:	1x 10/100 Base-T
Termination:	Solder	LEDs:	Optional
Mounting:	Vertical	Samples:	Available

Part Number:	HFJV1-E2450-L21RL
Mass Production:	LPJD5011BENL
Original Munafactuer:	LINK-PP
Application:	1x 10/100 Base-T
Termination:	Solder
LEDs:	Optional
Mounting:	Vertical
Samples:	Available

HFJV1-E2450-L21RL Rj45 Vertical With Magnetics 1x1 10/100BASE-T LPJD5011BENL

FastJack ™ 1x1 Vertical 10/100BASE-T RJ45

1. 10/100BASE-T Ethernet RJ45
2. IEEE802.3u Compliant
3. 350uH min OCL at 8mA DC Bias Across the Full Temp Range
4. 30µ” Gold Plating (min) on Contacts
5. 100% Compliance Testing
6. 1500Vrms Hi-Pot

Electrical Specifications @25℃
1.OCL: 350uH Min
@100KHz,0.1V,8mADC BIAS
2.Turns Ratio(%%P2%):
TX = 1CT∶1CT RX = 1CT∶1CT
3.Insertion Loss:
0.1-100MHz:-1.1dB Max
4.Return Loss(dB Min):
0.5-30MHz:-18 40MHz:-15.5
50MHz:-13.6 60-80MHz:-12
5.Crosstalk(dB Typ):
0.1-100MHz:-40
6.Common Mode Rejection(dB Typ):
0.1-30MHz:-50 30-60MHz:-40
60-100MHz:-35
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: -40℃～+85℃
