HFJV1-1G16-L12RL , LPJD0773BDNL Vertical rj45 Jack, HFJV1-1G41-L12RL Gigabyte

Name: HFJV1-1G16-L12RL , LPJD0773BDNL Vertical rj45 Jack, HFJV1-1G41-L12RL Gigabyte
Brand: LINK-PP
SKU: HFJV1-1G16-L12RL
Price: 0.09 USD
Availability: InStock
Rating: 5 (195 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HFJV1-1G16-L12RL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 54PCS/Tray,24Trays=37*30*30CM=1296PCS=10KG/Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                stacked rj45 connectors, multi port connector


Specification1:	HFJV1-1G16-L12RL	Specification2:	HFJV1-1G41-L12RL
Part No:	LPJD0773BDNL	Mounting:	DIP / Top Entry
Application:	10/100/1000Mbps	Termination:	Solder
LEDs:	Optional	Samples:	Available

Specification1:	HFJV1-1G16-L12RL
Specification2:	HFJV1-1G41-L12RL
Part No:	LPJD0773BDNL
Mounting:	DIP / Top Entry
Application:	10/100/1000Mbps
Termination:	Solder
LEDs:	Optional
Samples:	Available

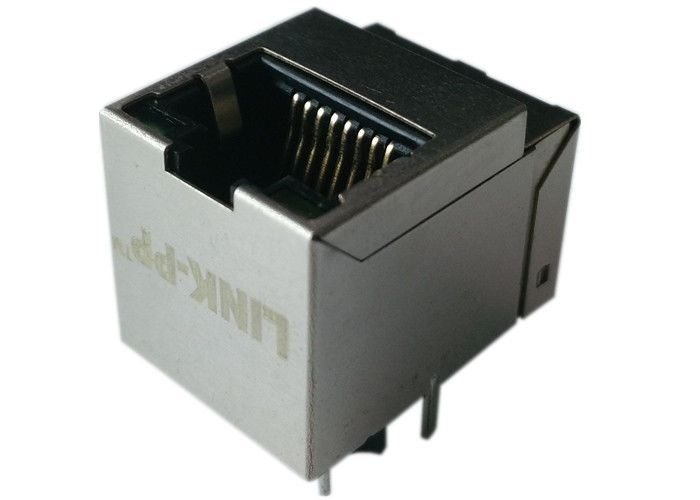

HFJV1-1G16-L12RL , LPJD0773BDNL Vertical rj45 Jack, HFJV1-1G41-L12RL Gigabyte

HFJV1-1G16-L12RL , LPJD0773BDNLVertical rj45 Jack, HFJV1-1G41-L12RL Gigabyte

FastJack ™ 1x1 Vertical Gigabit RJ45

1.Gigabit (10/100/1000) Ethernet RJ45
2.IEEE802.3ab Compliant
3.350uH min OCL at 8mA DC Bias Across theFull Temp Range
4.30µ” Gold Plating (min) on Contacts
5.100% Compliance Testing
6.1500Vrms Hi-Pot

7..Designing Model: HFJV1-1G16-L12RL

8..Mass Production Model: LPJD0773BDNL

MAG., REVERSE LATCH , LED optional, EMI-finger Optional.

HFJV1-1G16-L12RL , LPJD0773BDNL Vertical rj45 Jack, HFJV1-1G41-L12RL Gigabyte 0

Electrical Specifications @25℃
1.Impedance: 100 ohms
2.OCL: 350uH Min
@100KHz,0.1V,8mADC BIAS
3.Turns Ratio: 1∶1 ±3%
4.Insertion Loss:
1-100MHz:-1.1dB Max
5.Return Loss(dB Min):
1-40MHz:-18 60MHz:-14
80MHz:-12 100MHz:-10
6.Crosstalk:
1-100MHz:-35dB Typ
7.Common Mode Rejection(dB Typ):
0.1-30MHz:-38 30-60MHz:-35
60-100MHz:-30
8.Isolation Voltage: 1500Vrms
9.Operating Temperature:0～70℃
