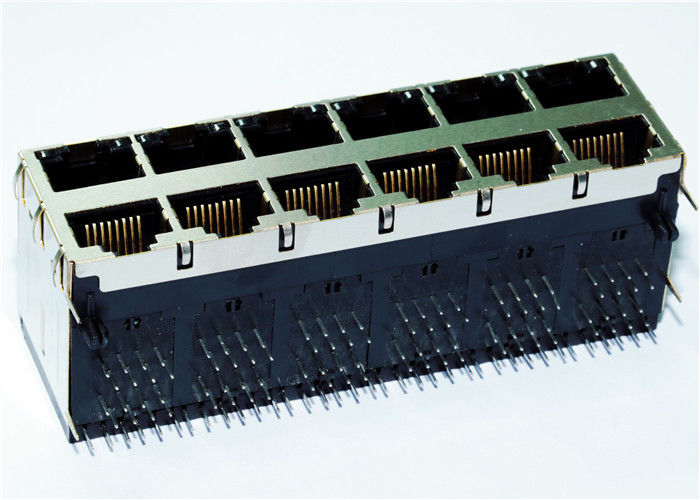

0833-2X6R-55-F Stacked 2x6 Conn Magjack 12Port 100 Base-T Rj45 Shielded

Name: 0833-2X6R-55-F Stacked 2x6 Conn Magjack 12Port 100 Base-T Rj45 Shielded
Brand: LINK-PP
SKU: LPJ67499CNL
Price: 0.11 USD
Availability: InStock
Rating: 4.5 (137 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LPJ67499CNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 usb connector combo


Spec:	0833-2X6R-55-F	Alternate:	LPJ67499CNL
Family:	12 Port Magnetic Rj45	Applications:	10/100 Base-T
Mounting:	Through Hole	Files:	PDF / IGS / Datasheet
Standard:	IEEE802.3af/ Ieee802.3at	Cross Rf:	LPJ67499CNL = 0833-2X6R-55-F

Spec:	0833-2X6R-55-F
Alternate:	LPJ67499CNL
Family:	12 Port Magnetic Rj45
Applications:	10/100 Base-T
Mounting:	Through Hole
Files:	PDF / IGS / Datasheet
Standard:	IEEE802.3af/ Ieee802.3at
Cross Rf:	LPJ67499CNL = 0833-2X6R-55-F

0833-2X6R-55-F Stacked 2x6 Conn Magjack 12Port 100 Base-T Rj45 Shielded

LPJ67499CNL Cros 0833-2X6R-55-F Stacked 2x6 Conn Magjack For POE/POE+

0833-2X6R-55-F Stacked 2x6 Conn POE/POE+ Magjack 12Port 100 Base-T Rj45 Shielded

1.RJ-45 needs to be matched FCC standard.
2.Complies with requirement of IEEE802.3u standards.
3.RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
4.Size same as RJ-45 connector to save PCB board space.
5.Reduced EMI radiation to improve EMI performance.
6.Design for 10/100 BASE transmission over UTP-5 cable.
7.Compliance with ROHS requirements.
8.Operating temperature range: 0℃ to +70℃/ -40℃ to +85℃
9.Designing Model: 0833-2X6R-55-F

10.Mass Production Model: LPJ67499CNL Pin to Pin Compatible Equivalent in China

MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.

Description

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

20 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
