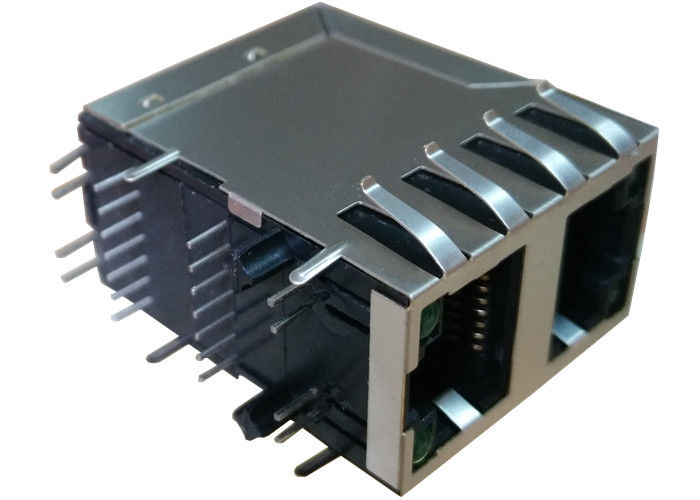

DA1T002I3 / DA1T101J1 Stacked RJ45 2x1 Integrated Gigabit Ethernet Modular Jack

Name: DA1T002I3 / DA1T101J1 Stacked RJ45 2x1 Integrated Gigabit Ethernet Modular Jack
Brand: LINK-PP
SKU: DA1T002I3 / DA1T101J1
Price: 0.11 USD
Availability: InStock
Rating: 4.6 (194 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: DA1T002I3 / DA1T101J1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 usb connector combo


Spec 1:	DA1T002I3	Spec-2:	DA1T101J1
Connector Type:	RJ45 Female	Applications:	1000 Base-T
Mounting Type:	Through Hole	Orientation:	90～ Angle (Right)
Termination:	Solder	Shielding:	Shielded, EMI Finger

Spec 1:	DA1T002I3
Spec-2:	DA1T101J1
Connector Type:	RJ45 Female
Applications:	1000 Base-T
Mounting Type:	Through Hole
Orientation:	90～ Angle (Right)
Termination:	Solder
Shielding:	Shielded, EMI Finger

DA1T002I3 / DA1T101J1 Stacked RJ45 2x1 Integrated Gigabit Ethernet Modular Jack

DA1T002I3 / DA1T101J1 Stacked RJ45 2x1 Integrated Gigabit Ethernet Modular Jack

DA1T002I3 / DA1T101J1

Rj45 2x1

Stacked RJ45 Modular jack

Rj45 Stacked Connectors

10 / 100 / 1000 Base-T RJ45 2x1 Integrated Magnetics Connector

1.Complies with requirement of IEEE 802.3ab standards.
2.RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
3.Size same as RJ-45 connector to save PCB board space.
4.Reduced EMI radiation to improve EMI performance.
5.Design for 10/100/1000 BASE transmission over UTP-5 cable.
6.Compliance with ROHS requirements.
7.Operating temperature range: 0 ℃ to +70 .℃
8.Storage temperature range: -25 to +85 .

Designing Model: 【DA1T002I3 / DA1T101J1】

Mass Production Model:【LPJG17561A4NL / LPJG17503A146NL】

MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.

Description

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

DA1T002I3 / DA1T101J1

18 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly

Other Replaceable List

DA1T002I3 / DA1T101J1	Stacked RJ45 2x1	KRU1S041F LF
DA4T001A3 / DA4T103A2	DA6T001A3	DA4T10304
KLU1S041 LF/ LU1S041 LF	DA4S103A4	KRU1S516 LF
KLU1S041A LF / LU1S041A LF	DA4T103G3	KRU1S041X-43 LF
LU1S041A LF / LU1S041C LF	DA1T002I3	KRU1T041-34 LF
KLU1S041X LF / LU1S041X LF	DA1T101J1	KRU1T041FR-44 LF
KLU1T041 LF / DA6T001A3	DA4T103N3	DA4T10303
KLU1T516 LF / LU1T516 LF	DA4T10304	KHU1S041F3 LF
KLA1S109 LF / DA4S103A4	DA6T001A3	DA4S103A4
KLA1S109-43 LF / LA1S109-43 LF	DU1S201C4	KHU1S041Q4 LF
DA1T001A3 / DA1T002I3	DA1T002I3 / DA1T101J1	KHU1S041Q5 LF
KLU1S041C LF / LU1S041C LF	DU1T202A3	KHU1S041F7 LF
KLU1T041 LF / DA4T103G3	DU1T202B3	KHU1S041Q6 LF
DA1T002I3 / DA1T101J1	DU1T301A3	DA4T10304
KLA4S109 LF / LA4S109 LF	DU1T301B3	HU1S041X LF
DA1D102K4 / DA1T001A1	Stacked RJ45 2x1	DA1T002I3 / DA1T101J1
