Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 85727-1002 / 85727-1003 / 85727-1001
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part Number: |
85727-1002 / 85727-1003 / 85727-1001 |
Mass Production: |
LPJGXXXNL |
Connector Type: |
Stacked RJ45 |
Applications: |
2X4 Gigabit Magnetic Jack |
Mounting Type: |
Through Hole |
Orientation: |
90~ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |
Part Number: |
85727-1002 / 85727-1003 / 85727-1001 |
Mass Production: |
LPJGXXXNL |
Connector Type: |
Stacked RJ45 |
Applications: |
2X4 Gigabit Magnetic Jack |
Mounting Type: |
Through Hole |
Orientation: |
90~ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |

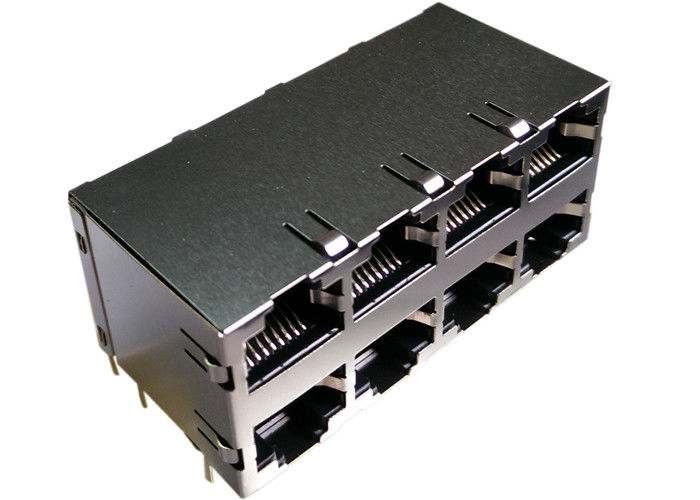

85727-1002 | 85727-1001 | 85727-1003 | Gigabit Magnetic Jack 2X4 |
Stacked Rj45 Modular jack | Rj45 2x4 Magnetics | Stacked Rj45 Connectors | Rj45 Stacked Connectors |
Designing Model: 【85727-100X】
♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place androute on PCB.
♦ Conserves minimizing PCB space.
Mass Production Model:【LPJGXXXNL】
MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
1500Vrms MIN
♦ Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
♦ Certificated by SGS , ISO9001:2008 , UL ,REACH and CE
♦ OEM of RJ45 connector and Transformer for Pulse, Belfuse ,WE ...etc
♦ Cooperate with Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp , etc
♦ Passing the Fluke Tester Entirely
♦ High Quality, Shortest Delivery Time
♦ Competitive Price, Perfect Packing and Best After-Sale Service
♦ Get 80% Off From DHL, UPS ,Fedex,TNT
♦ Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
♦ Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
