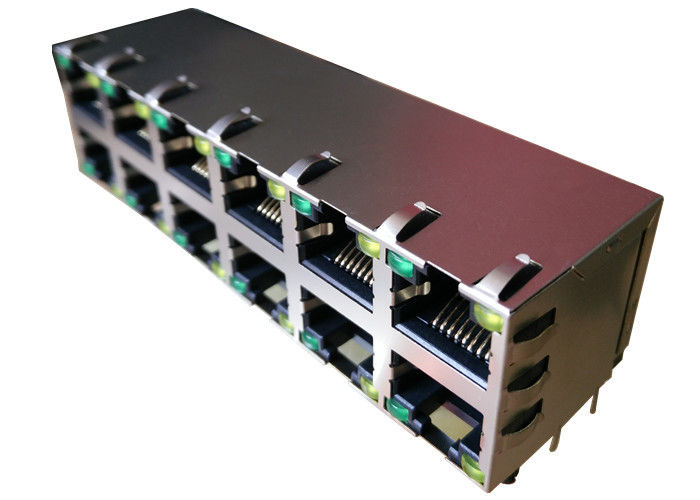

1840257-9 Stacked Rj45 Modular Jack Gigabit 2x6 MAG45 Ground Shield With Leds

Name: 1840257-9 Stacked Rj45 Modular Jack Gigabit 2x6 MAG45 Ground Shield With Leds
Brand: LINK-PP
SKU: 1840257-9
Price: 0.11 USD
Availability: InStock
Rating: 4.7 (194 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 1840257-9

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                stacked rj45 connectors, modular jacks rj45


Part Number:	1840257-9	Specifications:	1840257-9
Connector Type:	1000base-t Stacked Rj45 Pinout	Applications:	10/100/1000 Gigabit Ethernet
Mounting Type:	Through Hole	Orientation:	90～ Angle (Right)
Termination:	Solder	Shielding:	Shielded, EMI Finger

Part Number:	1840257-9
Specifications:	1840257-9
Connector Type:	1000base-t Stacked Rj45 Pinout
Applications:	10/100/1000 Gigabit Ethernet
Mounting Type:	Through Hole
Orientation:	90～ Angle (Right)
Termination:	Solder
Shielding:	Shielded, EMI Finger

1840257-9 Stacked Rj45 Modular Jack Gigabit 2x6 MAG45 Ground Shield With Leds

1840257-9

Stacked RJ45

Gigabit 2x6 MAG45

Rj45 Modular Jack

♦ Designing Model: 【1840257-9】

♦ Stacked Rj45 Connectors / Stacked Rj45 Modular jack
♦ 2x Rj45 Gigabit Magjack 1840257-9
♦ 2x Rj45 Lan Ports 1000Base-T
♦ Rj45 2x6 Magnetics / 2x Rj45 8P8C / Rj45 2x6
♦ Rj45 Stacked Connectors

♦ 10/100/1000 gigabit ethernet / magnetics Rj45
♦ Rj45 Integrated magnetics 1840257-9

♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place and route on PCB.
♦ Conserves minimizing PCB space.

♦ Mass Production Model:【LPJXXXXNL】

MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.

Description

1840257-9 Stacked Rj45 Modular Jack Gigabit 2x6 MAG45 Ground Shield With Leds

1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
1500Vrms MIN Or More

Ethernet Applications

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Advantage

1840257-9 Stacked Gigabit With LED
18 years production experience,
2600 staff,
100% test
Flexible delivery time

Famous Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Components Sourcing

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
